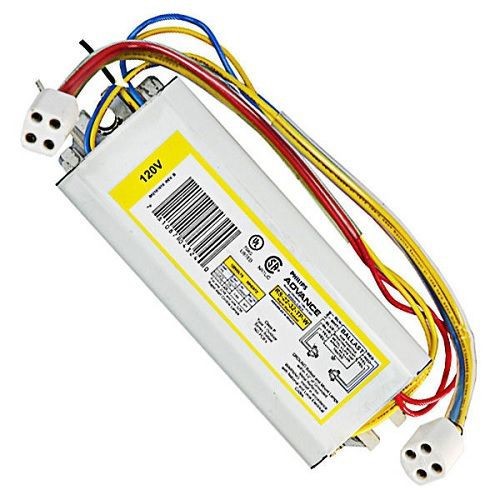

Advance RS2232TPWI Electromagnetic Fluorescent Ballast, T9 Lamp, 32 W Lamp, 120 VAC, Rapid, 0.7 Ballast Factor

Selected Advance RS2232TPWI Electromagnetic Fluorescent Ballast, T9 Lamp, 32 W Lamp, 120 VAC, Rapid, 0.7 Ballast Factor
Advance RS2232TPWI Electromagnetic Fluorescent Ballast, T9 Lamp, 32 W Lamp, 120 VAC, Rapid, 0.7 Ballast Factor

Features

  • Series lamp connection
  • 112 - 127 VAC Applied voltage limits
  • Yellow color label identification
  • 20 - 24 dB Average ambient noise level
  • Normal power factor
  • Available for many fluorescent lamp types sold today, including Preheat, Rapid Start, 2-pin CFL, Slimline, High Output, Very High Output and Circline
  • Only choice for many low volume lamp types on the market
  • 60 Hz lamp operation eliminates possible EMI/RFI interference

Specification

Frequency Rating
60 Hz
Lamp Wattage
22/32 W
Material
Metal
Minimum Starting Temperature
50 deg F
Number of Lamps
2
Start Type
Rapid
Thermal Protection
Class P
Voltage Rating
120 VAC
Application
TV or Radio Station, Library, Reception or Reading Room, Church and School Study Hall
Standard & Approvals
UL File No. E14927, CSA File No. 007310, ANSI C82.1, RoHS Compliant
Amperage Rating
0.8 A
Ballast Factor
0.7
Dimensions
6.5 in L x 2.38 in W x 1.5 in H
Total Harmonic Distortion
15%
Series
Standard
