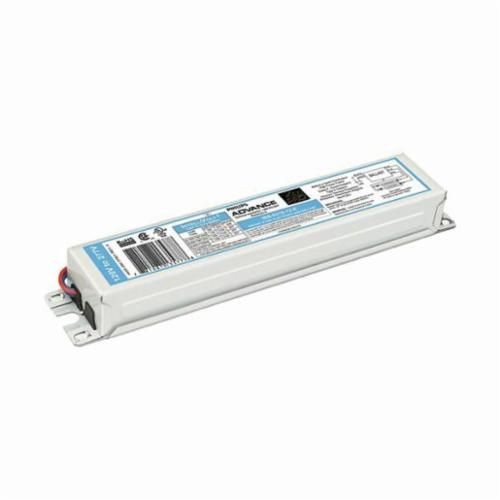

Advance ISB084846EI SignPRO Fluorescent Sign Ballast, T12/HO Lamp, 110 W Lamp, 120 to 277 VAC, Instant, 0.6 Ballast Factor

Selected ISB084846EIAdvance ISB084846EI SignPRO Fluorescent Sign Ballast, T12/HO Lamp, 110 W Lamp, 120 to 277 VAC, Instant, 0.6 Ballast Factor
ISB084846EIAdvance ISB084846EI SignPRO Fluorescent Sign Ballast, T12/HO Lamp, 110 W Lamp, 120 to 277 VAC, Instant, 0.6 Ballast Factor

Documents

Short Description

Philips advance signPRO line.a brand synonymous with full line, high quality sign ballasts offered exclusively to the sign industry to support the market's broad range of sign applications, now adds: ...four new energy efficient signPRO electronic fluorescent sign ballasts for T8/HO and T12/HO high output (800mA) Lamps. Philips advance signPROline.a brand synonymous with full line, high quality sign ballasts offered exclusively to the sign industry to support the market's broad range of sign applications, now adds: four new energy efficient signPRO electronic fluorescent sign ballasts for T8/HO and T12/HO high output (800mA) Lamps..

Features

  • 8 to 48 ft lamp footage
  • Smart replacement for banned magnetic rapid start sign ballasts
  • Designed so that when one lamp fails, other lamps remain lit
  • Built tough and fully potted
  • Simplifies inventory needs
  • Parallel lamp connection
  • Solid wire type
  • 18 AWG wire gauge
  • 0.1 s ignition time
  • 1.7 lamp current crest factor

Specification

Frequency Rating
50/60 Hz
Lamp Base Type
2-Pin
Lamp Type
T12
Material
Metal
Minimum Starting Temperature
-20 deg F
Number of Lamps
4 to 6
Start Type
Instant
Type
High Output
Voltage Rating
120 to 277 VAC
Wattage
390/384 W
Standard & Approvals
UL Listed, CSA Approved, RoHS Compliant
Ballast Factor
0.6
Dimensions
14.31 in L x 3.19 in W x 2.63 in H
Amperage Rating
3.4 A
Total Harmonic Distortion
0.1
Power Factor
0.98
Lamp Wattage
110 W
