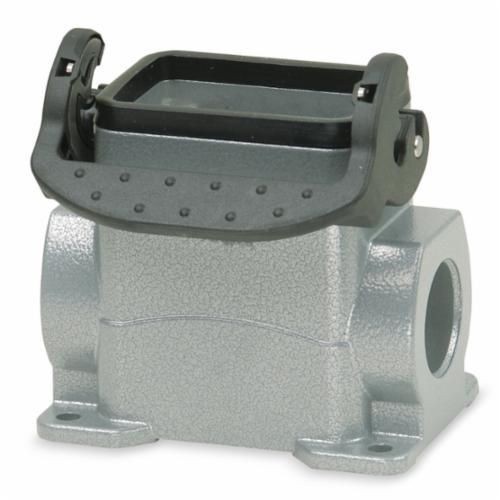

Pos-E-Kon® BB406MV 1-Lever Locking Box Base, 1 x 1/2 in NPT Entry, Surface Mount, Die Cast Aluminum

Selected Pos-E-Kon® BB406MV 1-Lever Locking Box Base, 1 x 1/2 in NPT Entry, Surface Mount, Die Cast Aluminum
Pos-E-Kon® BB406MV 1-Lever Locking Box Base, 1 x 1/2 in NPT Entry, Surface Mount, Die Cast Aluminum

Documents

Short Description

Pos-E-Kon® DIN-standard rectangular pin and sleeve connectors are modular for easy assembly at the customer site.

Features

  • 6 contacts with ground connection
  • IP65 locked positions per DIN VDE 0470, IEC 529
  • Die-Cast Aluminum Alloy
  • 100/Pack

Specification

Material
Aluminum
Mounting Type
Standard
Series
B Series
Specifications
16 A, 600 VAC
Temperature Rating
-40 to 257 deg F
Standard & Approvals
CSA Certified, UL Listed
Finish
Epoxy Powder Coated
Entry Type
1 x 1/2 in NPT
Type
Single Lever
Suitable For Use With
Standard Mount Hood
