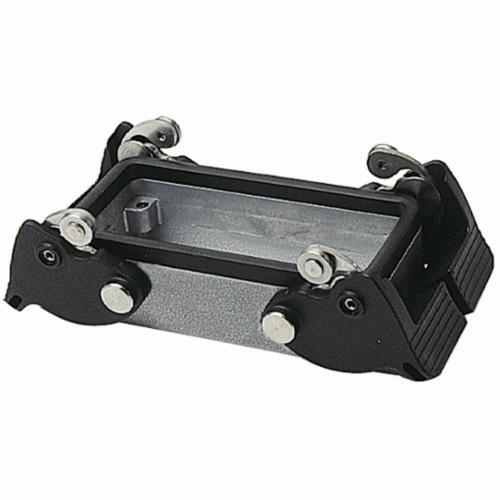

Pos-E-Kon® PB124 Double Lever Locking Panel Base, Rear, Panel Mount, Die Cast Aluminum

Selected PB124Pos-E-Kon® PB124 Double Lever Locking Panel Base, Rear, Panel Mount, Die Cast Aluminum
PB124Pos-E-Kon® PB124 Double Lever Locking Panel Base, Rear, Panel Mount, Die Cast Aluminum

Documents

Short Description

Pos-E-Kon® DIN-standard rectangular pin and sleeve connectors are modular for easy assembly at the customer site.

Features

  • 24 number of contacts
  • IP65 enclosure
  • Laser-etched labeling for all metal housings and hot-stamped labeling on contact carrier inserts
  • Non-slip comfortable grip for easier locking and unlocking
  • Metal roller panel base for pass-through adapter CA629B24
  • Die-Cast Aluminum Alloy
  • 10/Pack

Specification

Material
Aluminum
Mounting Type
Standard
Minimum Order Qty
1
Order Interval
1
Entry Position
Rear Access
Finish
Epoxy Powder-Coat
Specifications
16 A, 600 VAC
Temperature Rating
-40 to 257 deg F
Type
Double Lever
Series
B
Dimensions
1.26 in L x 2.28 in W x 1.06 in H
Catalog ID
T-BPB124
Application
For 24 pole socket with end locking lever
Suitable For Use With
B24/T24/V10/V16/D64/DD108/K/M Connector
