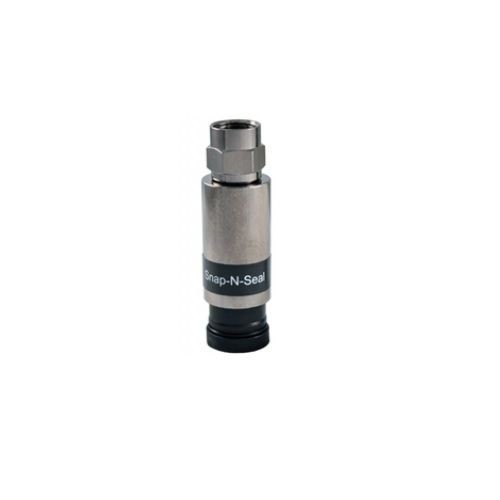

PPC® Snap-N-Seal® ProSNS™ 716SNS1P11H Type F Hybrid Universal Compression Connector, Male Connection, RG11 Cable, Crimp Termination, 4.5 GHz

Selected PPC® Snap-N-Seal® ProSNS™ 716SNS1P11H Type F Hybrid Universal Compression Connector, Male Connection, RG11 Cable, Crimp Termination, 4.5 GHz
PPC® Snap-N-Seal® ProSNS™ 716SNS1P11H Type F Hybrid Universal Compression Connector, Male Connection, RG11 Cable, Crimp Termination, 4.5 GHz

Documents

Short Description

Belden delivers industry-leading products by emphasizing superior quality and easy installation to provide a brand you can depend on to deliver innovation and reliability. By combining the advanced, patented design features of F-Conn® and the traditional, easy-to-use Snap-N-Seal® construction, we have created the industry's best compression connectors as part of the Snap-N-Seal® brand.

Features

  • The ProSNS™ connector family includes F, RCA and BNC universal connectors for series 6 and 59 coaxial cables as well as F and BNC connectors for series 11 coaxial cables
  • RGB/mini, plenum, and right angle connectors are also available in traditional configurations
  • All ProSNS™ connectors utilize TRUE 360 deg compression onto the cable providing superior RF shielding performance, -85 dB effective shielding (typical on 60% bonded foil cable)
  • The patented floating-pin insertion guide assists with the insertion of the cable into the connector and reduces the insertion force required to provide consistency and easy termination of the connector
  • An additional O-ring placed at base of the connector with a NiTin finish and UV resistant plastic provides a reliable, environmentally sealed product
  • ProSNS™ RG-11 connectors are designed utilizing an air dielectric for better performance and excellent return loss
  • Low insertion force is required to compress the connector onto the cable
  • The improved design offers the flexibility to be installed with nearly all available compression tools
  • Installation requires the industry standard 1/4 to 1/4 in cable preparation
  • CPLCCT-LS59/11 tool required
  • 7/16 in connector
  • For standard or quad shield cable

Specification

Frequency Rating
4.5 GHz
Impedance
75 Ohm
Material
Brass
Termination Type
Crimp
Type
Hybrid Universal Type F
Application
Commercial, Residential Audio/Video, Security and Broadband Markets
Standard & Approvals
RoHS Compliant
Cable Type
RG11
Color
Black
Connection Type
Male
Environmental Conditions
-40 to 140 deg F Temperature Rating
Finish
Nickel Plated
