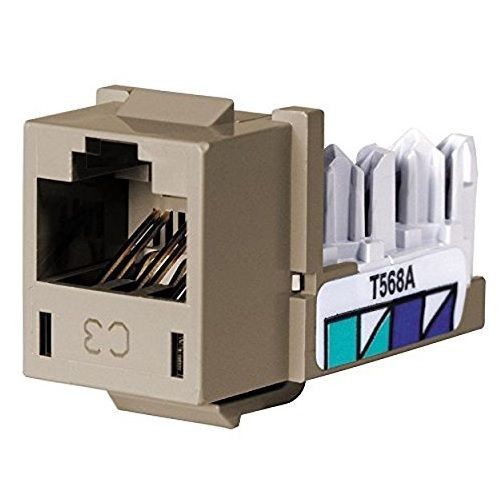

Wiring Device-Kellems XCELERATOR™ HXJ3AL 8-Position Standard Universal A/B Jack, Cat 3 Module, Keystone Mount, Almond

Selected Wiring Device-Kellems XCELERATOR™ HXJ3AL 8-Position Standard Universal A/B Jack, Cat 3 Module, Keystone Mount, Almond
Wiring Device-Kellems XCELERATOR™ HXJ3AL 8-Position Standard Universal A/B Jack, Cat 3 Module, Keystone Mount, Almond

Short Description

The innovative XCELERATOR™ Cat 3 series jacks delivers cost effective leading edge technology, for all Cat 3 applications, providing an excellent solution for all telephony and low data transmission applications. The QuickLace™ termination process combined with the exclusive 1-punch tool delivers the fastest termination in the structured cabling industry. The innovative combination reduces termination time by 75% and provides a consistent termination every time. The XJ3 easily installs into all HPW INFINeSTATION™ products, including rear loading plates and front loading modules and frames. XCELERATOR™ jacks can be used in multimedia configurations with our A/V (Audio/Video) connectors customizing all workstations, consolidation points and telecommunication closets.

Features

  • One punch termination reduces termination time by 75%
  • Mating cycles exceed industry standard by four times
  • IDC towers have an inner blade to assist in pair splitting without performance disruption
  • Small form factor allows more jacks in devices without restriction or constraint
  • Two distinct labels eliminate wiring confusion, T568B/T568A

Specification

Material
Thermoplastic
Mounting Type
Keystone
Minimum Order Qty
1
Order Interval
1
Number of Ports
1
Module Type
Cat 3, RJ45
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, ANSI/TIA/EIA-568-C.2, UL 1863, CSA Certified, ISO 11801, UL 94-V-0 Flammability Rating
Application
Telephone, Data Distribution, 10BASE-T and DSL Applications
Type
8-Position Standard Universal A/B
Dimensions
1.293 in H x 0.679 in W x 0.982 in D
Color
Almond
Catalog ID
HPWHXJ3AL
Video
https://www.youtube.com/watch?v=tTSIE_waIao
