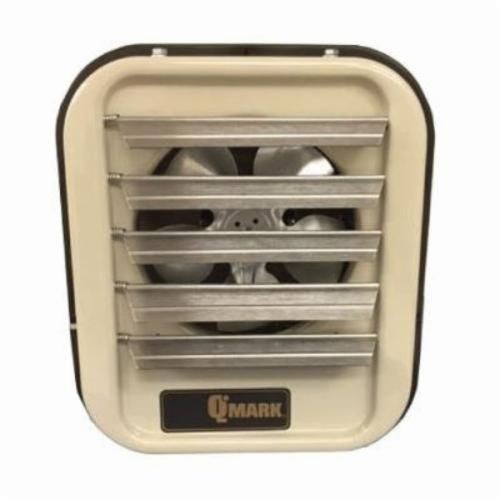

QMARK® MUH154 3-Phase Unit Heater, 15 kW, 480 VAC

Name: QMARK® MUH154 3-Phase Unit Heater, 15 kW, 480 VAC
Brand: QMARK®
SKU: QMKMUH154
Price: 2509.83 USD
Availability: InStock

Marley Engineered Products

SKU: QMKMUH154

Manufacturer Part Number: MUH154

UPC: 685360047430

Installation Instructions
Specification Sheet
Instruction/Installation Manual
Specification Sheet

Heavy gauge die-formed steel housing, two-toned, smartly styled
Advanced pull-through air flow design draws air across heating element for more even air distribution and cooler element operation
Specially designed venturi outlet to meet that added throw as required in vertical position
Branch circuit fusing
Completely enclosed fan motor
Aluminum-finned, copper clad steel sheath heating element has longer useful life, because of cooler sheath temperature and faster heat dissipation
Automatic reset linear thermal cut-out, capillary type, provides protection over entire length of element areas (Manual reset protection available on made-to order basis)
2 speed fan selector switch
Fan delay feature eliminates cold drafts
Element heats up before fan cuts in, then fan continues to distribute heat after element shuts off
Ruggedly built, yet lighter weight for easier installation, no piping flutes, valves or traps
Individually adjustable discharge louvers to control air flow
Choice of optional diffusers for variety of air patterns, maximizing heat concentration and coverage in the vertical position
24 V contactor coil voltage
AWG 10 wire size
1 - 20 HP fan motor
1530 rpm fan motor speed
53 lb weight
3 phase
35 ft air throw horizontal
