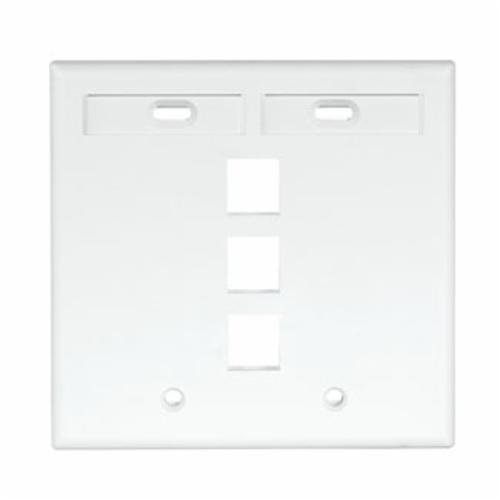

Leviton® QuickPort® 42080-3WP Standard Size Wallplate With ID Window, 2 Gangs, 4-5/8 in W, Plastic, Flush Mount

Selected 42080-3WPLeviton® QuickPort® 42080-3WP Standard Size Wallplate With ID Window, 2 Gangs, 4-5/8 in W, Plastic, Flush Mount
42080-3WPLeviton® QuickPort® 42080-3WP Standard Size Wallplate With ID Window, 2 Gangs, 4-5/8 in W, Plastic, Flush Mount

Documents

Short Description

Leviton® single-gang and dual-gang wallplates accept QuickPort® snap-in modules to support multimedia station applications with 1, 2, 3, 4, 6, 8 and 12 ports. It must be able to accept all Leviton® QuickPort® modules. Colors, port counts and configurations to be specified per schedule on plan. Wallplate screws shall match wallplate color.

Features

  • Color matched wallplate screws
  • Fits within minimum rectangular NEMA openings
  • Compatible with all individual QuickPort® modules
  • Individual port configurability allows specification flexibility
  • Narrow module width allows high port density in a small area
  • High impact, fire retardant plastic
  • ID designation windows for each wallplate
  • 2 designation ID windows

Specification

Material
Plastic
Mounting
Flush
Number of Gangs
2
Application
Commercial Applications
Standard & Approvals
UL Listed, CSA Certified, TIA/EIA-568-B and Meets FCC Part 68, RoHS Compliant
Color
White
Type
Standard Size
Thickness
0.2
Size
4.53 in H x 4.625 in W
