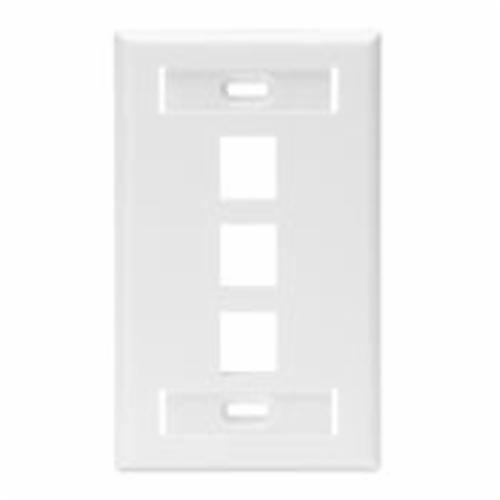

Leviton® QuickPort® 42080-3WS Standard Size Wallplate With ID Window, 1 Gang, 2-3/4 in W, Plastic, Flush Mount

Selected 42080-3WSLeviton® QuickPort® 42080-3WS Standard Size Wallplate With ID Window, 1 Gang, 2-3/4 in W, Plastic, Flush Mount
42080-3WSLeviton® QuickPort® 42080-3WS Standard Size Wallplate With ID Window, 1 Gang, 2-3/4 in W, Plastic, Flush Mount

Short Description

Leviton single-gang and dual-gang wallplates accept QuickPort snap-in modules to support multimedia station applications with 1, 2, 3, 4, 6, 8, and 12 ports. It must be able to accept all Leviton QuickPort modules. Colors, port counts, and configurations to be specified per schedule on plan. Wallplate screws shall match wallplate color. Available in five colors: white, light almond, grey, ivory, and black.

Features

  • Color-matched wallplate screws
  • Fits within minimum rectangular nema openings
  • Compatible with all individual QuickPort modules
  • Individual port configurability allows specification flexibility
  • Narrow module width allows high port density in a small area
  • Single-gang and dual-gang wallplates accept QuickPort snap-in modules to support multimedia station applications with 1, 2, 3, 4, 6, 8 and 12 ports
  • Use where port ID windows in a single-gang or dual-gang economical flush mount housing is desired
  • High-impact, fire-retardant plastic rated UL 94V-0
  • Includes ID designation windows for each wallplate

Specification

Material
Plastic
Mounting
Flush
Number of Gangs
1
Number of Ports
3
Orientation
Vertical
Size
4.53 in H x 2.75 in W
Thickness
0.2 in
Type
Standard
Standard & Approvals
UL Listed, CSA Certified, TIA/EIA-568-B and Meets FCC Part 68, RoHS Compliant
Color
White
Construction
High Impact
