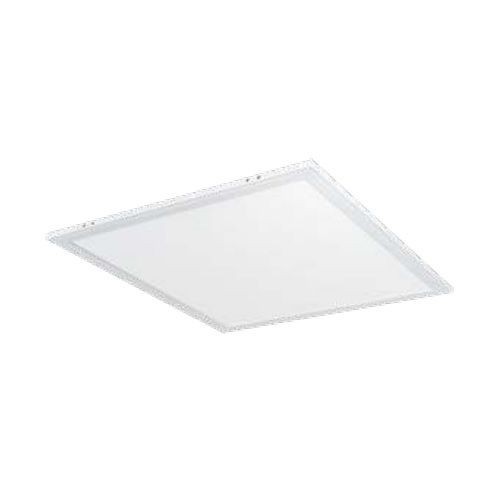

RAB EZPAN2X2-30N/D10 EZPAN™ Standard Edgelit Panel Light, LED Lamp, 29 W Fixture, 120/208/240/277 VAC, Aluminum Housing
RAB EZPAN2X2-30N/D10 EZPAN™ Standard Edgelit Panel Light, LED Lamp, 29 W Fixture, 120/208/240/277 VAC, Aluminum Housing
SKU: RABEZPAN2X2-30N/D10
Manufacturer Part Number: EZPAN2X2-30N/D10
UPC: 019813491523
Documents
Features
- Perfect for shallow plenums
- Even and diffuse ambient illumination, ideal for spaces where glare free lighting is required
- Ultra efficient, up to 124 lm/W, reducing energy costs by up to 73%
- 0.25 A at 120 VAC, 0.015 A at 208 VAC, 0.13 A at 240 VAC, 0.11 A at 277 VAC
Specification
| Housing Material | Aluminum |
|---|---|
| Lamp Type | LED |
| Lamp Wattage | 30 W |
| Lens Type | Frosted Polystyrene |
| Light Color | Neutral White |
| Mounting Type | Ceiling |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Ballast Type | Constant Current |
| Color Rendering Index (CRI) | 83 |
| Color Temperature | 4000 |
| Series | EZPAN |
| Voltage Rating | 120/208/240/277 VAC |
| Standard & Approvals | UL Listed for Damp Locations, DLC Listed, IESNA LM-79, LM-80 |
| Fixture Wattage | 29 W |
| Dimensions | 2 ft H x 2 ft W x 1-5/8 in D |
| Catalog ID | RABEZPAN2X2-30N/D10 |
| Average Life | 60000 |
| Amperage Rating | 0.015/0.11/0.13/0.25 A |
| Lumens | 3317 Lumens |
| Light Output | 113 |
