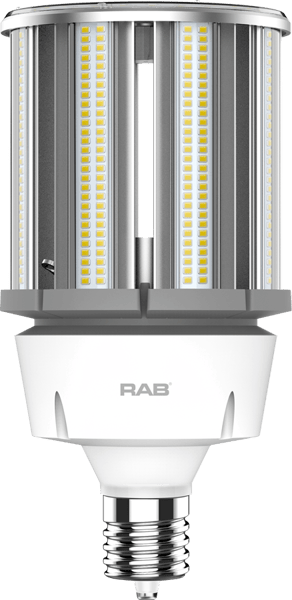

RAB HID-100-EX39-840-BYP-PT-G2 Type B HID Replacement LED Lamp, 100 W, EX39 LED Lamp, 15000 Lumens
RAB HID-100-EX39-840-BYP-PT-G2 Type B HID Replacement LED Lamp, 100 W, EX39 LED Lamp, 15000 Lumens
SKU: RABHID100EX39840BYPPTG2
Manufacturer Part Number: HID-100-EX39-840-BYP-PT-G2
UPC: 019813510316
Features
- HID replacement - replace conventional HID lamps
- Ballast bypass - internal driver eliminates the need for external ballasts or drivers
- Compact design - allows the lamp to fit in most fixtures
- Heat dissipation - thermal technology extends lifespan
- Water and dust-resistant - ideal for rugged applications, IP65 rated
- Enclosed fixture rated - may be used in both enclosed and open fixtures
- Instant on - no warmup time required, full brightness instantly
- Surge protection - includes 4 kV surge protection
- 0.67 mA at 120 VAC amperage rating
- Equivalent to 400 W HID
Specification
| Standard & Approvals | UL Listed, DLC Listed, RoHS Compliant |
|---|---|
| Start Type | Instant On |
| Voltage Rating | 100 to 277 VAC |
| Amperage Rating | 0.67 mA |
| Average Life | 50000 hr |
| Ballast Type | Bypass |
| Beam Angle | 360 deg |
| Color Rendering Index (CRI) | 80 |
| Color Temperature | 4000 K |
| Fixture Type | Enclosed/Open |
| Lamp Base Type | EX39 |
| Lamp Type | LED |
| Lumens | 15000 Lumens |
| Type | Type B |
| Shape | Post Top |
| Wattage | 100 W |
| Designation | HID-100-EX39-840-BYP-PT-G2 |
| Dimensions | 5-1/8 in Dia x 10-3/16 in L |
| Color | Cool White |
