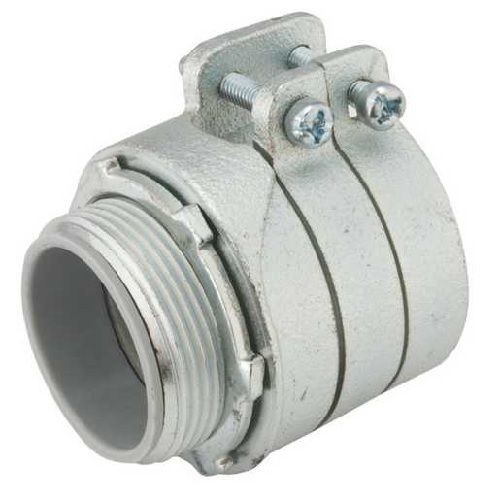

RACO® 3306 Insulated Straight Squeeze Conduit Connector, 1-1/2 in Trade, 1-1/2 in Cable Openings, Malleable Iron, Electro-Plated Zinc

Selected RACO® 3306 Insulated Straight Squeeze Conduit Connector, 1-1/2 in Trade, 1-1/2 in Cable Openings, Malleable Iron, Electro-Plated Zinc
RACO® 3306 Insulated Straight Squeeze Conduit Connector, 1-1/2 in Trade, 1-1/2 in Cable Openings, Malleable Iron, Electro-Plated Zinc

Features

  • All malleable iron construction insures mechanical protection for the raceway
  • Electro zinc plated for added corrosion protection
  • 1.45 in ID throat
  • 43/64 in thread length

Specification

Material
Malleable Iron
Trade Size
1-1/2 in
Type
Insulated Straight
Application
For use in dry locations to bond flexible metal conduit to a box or enclosure and electrical applications
Standard & Approvals
UL File No. E195969, cULus Listed
Dimensions
2.4687 in L x 2.8437 in W
Cable Openings
1-1/2 in
Color
Silver
Finish
Electro-Plated Zinc
