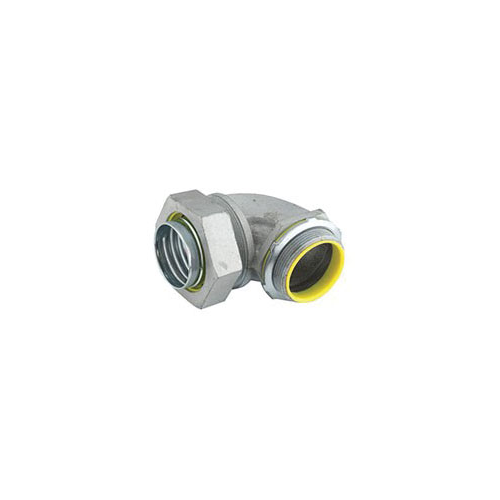

RACO® 3545 Insulated Conduit Connector, 1-1/4 in Trade, 90 deg, Malleable Iron/Steel, Electro-Plated Zinc
RACO® 3545 Insulated Conduit Connector, 1-1/4 in Trade, 90 deg, Malleable Iron/Steel, Electro-Plated Zinc
SKU: RAC3545
Manufacturer Part Number: 3545
UPC: 050169035450
Features
- Patented split gland-ring is designed to slip onto the conduit quickly gripping the jacket of the conduit, speeding installation, assuring a perfect seal, and preventing pullouts
- All components are reusable RACO liquid-tight connectors may be easily disassembled and reused after years of service
- Sealing washer provides a liquid-tight seal when terminating the connector in a threadless opening
- Heavy-duty locknut with every RACO liquid-tight connector assures continuity of ground
- 3/8 to 4 in Malleable iron bodies, 3/8 to 1 in Steel nuts, 1-1/4 to 4 in malleable iron nuts
- 1-1/4 in - 11-1/2 NPT thread specification
- 21/32 in thread length
Specification
| Material | Steel/Malleable Iron |
|---|---|
| Suitable For Use With | Non-Metallic and Metallic Flexible Type B Liquidtight Conduit and Cord Connector |
| Trade Size | 1-1/4 in |
| Type | Insulated |
| Application | For use in outdoor or indoor locations and positively bond the conduit to a box or enclosure and hazardous locations |
| Standard & Approvals | CSA Certified, UL Listed, Class 1, Division 2, Class 2, Division 1 And 2, And Class 3, Division 1 |
| Dimensions | 2-1/4 in L x 2-7/16 in W |
| Angle | 90 deg |
| Color | Silver |
| Finish | Zinc Electroplated |
| Includes | Sealing Washer and Locknut |
