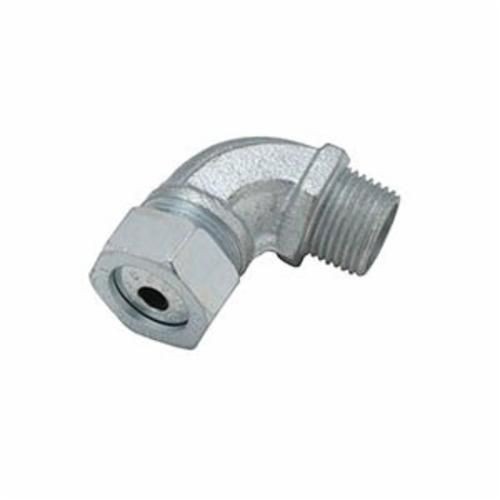

RACO® 3792-2 Form 1 Liquidtight Strain Relief Angled Cord Connector, 1/2 in Trade, 1/4 to 3/8 in Cable Openings, Malleable Iron, Electro-Plated Zinc

Selected 3792-3RACO® 3792-2 Form 1 Liquidtight Strain Relief Angled Cord Connector, 1/2 in Trade, 1/4 to 3/8 in Cable Openings, Malleable Iron, Electro-Plated Zinc
3792-3RACO® 3792-2 Form 1 Liquidtight Strain Relief Angled Cord Connector, 1/2 in Trade, 1/4 to 3/8 in Cable Openings, Malleable Iron, Electro-Plated Zinc

Documents

Short Description

RACO is one of the oldest brands in the electrical industry and its name is synonymous with quality and innovation. RACO continues to be a leading manufacturer of steel electrical boxes, covers, and fittings. It’s product portfolio also includes a complete line of nonmetallic boxes and covers, floor boxes and switches. RACO is dedicated to providing innovative, cost effective product solutions to the commercial and residential markets.

Features

  • All steel/malleable construction provides mechanical strength
  • Unique neoprene grommet design, imprinted size range on washers, wet or dry locations
  • Washers have cable size range imprinted for identification - eliminates misidentifying inventory
  • Use RACO locknuts and sealing washers to complete a liquid tight installation on a sheet metal box or panel
  • All metallic components are zinc electro plated for added corrosion protection
  • RACO liquidtight strain relief cord connectors are suitable for use in Class I, Div 2, Class II, Div 1 and 2, and Class III, Div 1 and 2 hazardous locations
  • Form 1
  • 35/64 in thread length
  • 1-3/8 in thread to bend
  • 1-7/16 in nut to bend
  • 1/2 in-14 NPT

Specification

Material
Malleable Iron
Minimum Order Qty
1
Order Interval
1
Angle
90 deg
Catalog ID
RAC3792-2
Color
Silver
Connection Type
Threaded
Dimensions
1-3/64 in OD
Finish
Zinc Plated
Trade Size
1/2 in
Standard & Approvals
cULus Listed, UL E195973 Listed
Cable Openings
1/4 - 3/8 in
Video
https://youtu.be/fY80aTstV6s
