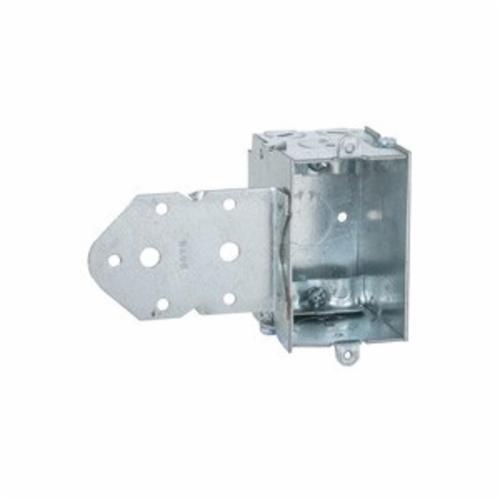

RACO® 529 Gangable Switch Box, Steel, 12.5 cu-in Capacity, 1 Gangs, 1 Outlets, 7 Knockouts, 5.59 in H x 4.22 in W x 2.5 in D

RACO® 529 Gangable Switch Box, Steel, 12.5 cu-in Capacity, 1 Gangs, 1 Outlets, 7 Knockouts, 5.59 in H x 4.22 in W x 2.5 in D
SKU: RAC529
Manufacturer Part Number: 529
UPC: 050169005293
Documents
Features
- Gangable switch box offers the option of constructing a box to hold two or more devices
- 4 end cable
- (2) 1/2 in end and (1) 1/2 in bottom conduit knockouts
- Long B bracket face mounts on stud, can be used when space between studs is limited, and offsets box 5/8 in to clear door mold ing
- For use in 2-hour rated walls
- Nail-On/screw-on mounting
Specification
Knockout Size | 1/2 in |
---|---|
Material | Steel |
Mounting Type | Threaded |
Number of Gangs | 1 |
Number of Outlets | 1 |
Shape | Rectangular |
Type | Gangable |
Standard & Approvals | UL E195978 |
Color | Silver |
Finish | Pre-Galvanized |
Capacity | 12.5 cu-in |
Cable Entry | Knockouts/Pryouts |
Dimensions | 5.59 in H x 4.22 in W x 2.5 in D |
Number of Knockouts | 7 |
Includes | LB Bracket and 5/8 in Setback |
