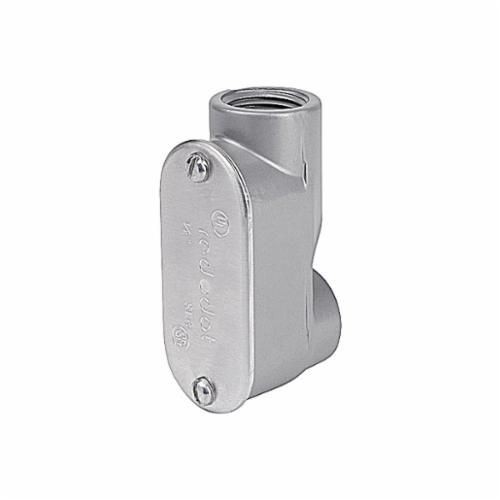

Red Dot® ASLB-5 Type LB Service Entrance Body With Cover, Gasket, (2) 1-1/2 in Hub, Die Cast Aluminum, Lacquered

Selected ASLB-5Red Dot® ASLB-5 Type LB Service Entrance Body With Cover, Gasket, (2) 1-1/2 in Hub, Die Cast Aluminum, Lacquered
ASLB-5Red Dot® ASLB-5 Type LB Service Entrance Body With Cover, Gasket, (2) 1-1/2 in Hub, Die Cast Aluminum, Lacquered

Documents

Short Description

Preferred for more than 50 years, Red Dot® weatherproof and conduit body solutions withstand the harshest elements and ensure trouble-free installation and years of superior performance.

Features

  • Copper-free aluminum provides increased corrosion resistance
  • Precision cast and machined surfaces permit safer wire pulling
  • Clean cover edges provide good gasket sealing
  • Precision NPT threaded and set screw hubs allow trouble-free field installation for rigid, IMC or EMT conduit
  • Retained deep slotted stainless steel cover screws for faster installation
  • Clear UL, CSA and cubic content markings speed approval by inspectors
  • Accessible wiring chamber provides a convenient location to pull conductors and make splices
  • Mounts flush to wall
  • Smooth throats for easy wire pulling
  • Die Cast Aluminum

Specification

Hub Size
1-1/2 in
Material
Aluminum
Mounting Type
Flush
Number of Hubs
2
Minimum Order Qty
1
Order Interval
1
Capacity
18.8 cu-in
Connection Type
Threaded
Finish
Aluminum Lacquer
Standard & Approvals
UL E28688 Listed, CSA Certified, Federal Specification W-C-586, NEC Article 370-5 and 370-28, RoHS Compliant
Application
For Rigid/IMC Conduit
Type
Type LB Service Entrance
Series
ASLB
Dimensions
7-1/4 in L x 7-7/8 in W x 2-1/2 in H
Catalog ID
R-DASLB-5
