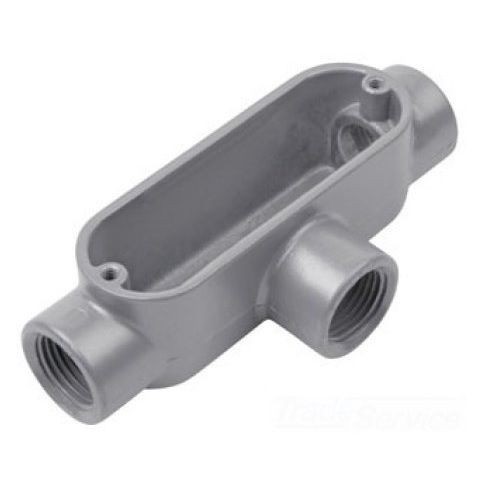

Red Dot® AT-6 Type T Conduit Body, 2 in Hub, 69.5 cu-in Capacity, Die Cast Aluminum

Selected Red Dot® AT-6 Type T Conduit Body, 2 in Hub, 69.5 cu-in Capacity, Die Cast Aluminum
Red Dot® AT-6 Type T Conduit Body, 2 in Hub, 69.5 cu-in Capacity, Die Cast Aluminum

Documents

Short Description

Preferred for more than 50 years, Red Dot® weatherproof and conduit body solutions withstand the harshest elements and ensure trouble-free installation and years of superior performance.

Features

  • Copper-free aluminum provides increased corrosion resistance
  • Precision cast and machined surfaces permit safer wire pulling
  • Clean cover edges provide good gasket sealing
  • Precision NPT threaded and set screw hubs allow trouble-free field installation for rigid, IMC or EMT conduit
  • Retained deep slotted stainless steel cover screws for faster installation
  • Retained stainless steel cover screws
  • Smooth throats for easy wire pulling
  • Die Cast Aluminum

Specification

Hub Size
2 in
Material
Aluminum
Number of Hubs
3
Type
Type T
Connection Type
Threaded
Application
For Rigid/IMC Conduit
Series
A
Dimensions
9-1/2 in L x 4 in W
Standard & Approvals
UL E28688 Listed, RoHS Compliant
Capacity
69.5 cu-in
