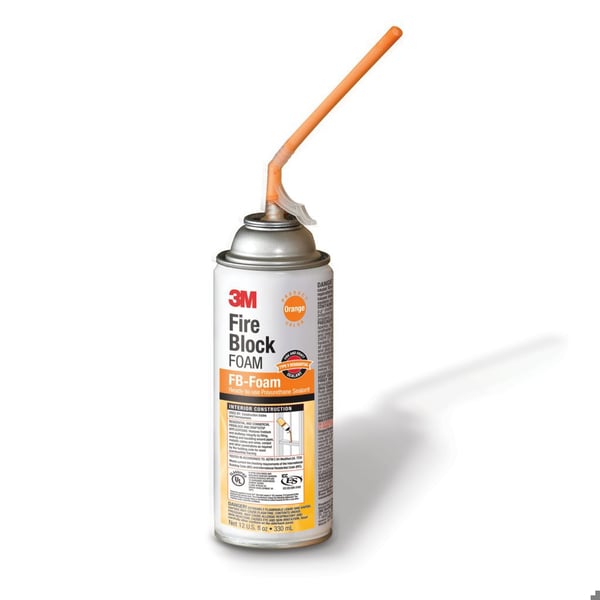

3M, Fire Blocking Foam, Orange, 12 oz, Aerosol Can, Class 1

Selected Data-Spec-Sheet3M, Fire Blocking Foam, Orange, 12 oz, Aerosol Can, Class 1
Data-Spec-Sheet3M, Fire Blocking Foam, Orange, 12 oz, Aerosol Can, Class 1

Documents

Short Description

3M™ Fire Block Foam FB-Foam is a ready-to-use foam fireblock designed to help prevent the spread of flames and smoke in residential Type V and commercial non-rated construction*. This product is intended to resist the free passage of flame and the by-products of combustion within the concealed space of a floor, ceiling or wall cavity by restricting the movement of air, fire and smoke. Also acts as a draft stop to restrict air infiltration and movement. Meets current fire blocking sealant requirements of the International Building Code (IBC) and International Residential Code (IRC), and state and local codes based on the IBC and IRC. 3M™ Fire Block Foam FB-Foam is recognized as a requirement to the methods prescribed by IBC and/or IRC codes for maintaining the integrity of penetrations of fire blocking and for draft stopping.

Features

  • Heat resistant up to 240 deg F (115 deg C)
  • ASTM E 84 Class 1 (modified)
  • Draftstop helps reduce air infiltration
  • Thermal insulator R-Value of 4 to 5 per inch typical
  • Ready to use (no mixing required)
  • Tack-free in approximately 5 minutes
  • Expands to quickly and effectively seal openings
  • Meets International Building Code (IBC) and International Residential Code (IRC) fire blocking requirements
  • Sag-resistant formulation
  • Excellent adhesion bonds to concrete, brick, metals, wood, plastic and cable jacketing
  • Minimal shrinkage
  • 1.0 lb/cu-ft core density
  • 5 minutes at 72 deg F tack free time
  • Very good adhesion (all construction substrates)
  • <0.01 CFM/sq ft at 6.24 psf, <0.0025 CFM/sq ft 1.57 psf air barrier (ASTM E 283)
  • 3M™ fire block foam FB-foam shelf life is 15 months in original unopened containers from date of packaging

Specification

Color
Orange
Container Size
12 fl oz
Standard & Approvals
UL Listed, ICC-ES ESR-3165
Odor/Scent
Slight Hydrocarbon
Form
Liquid
Container Type
Aerosol Can
