3M, Splicing Tape, Rubber, Black, 1-1/2 Inch x 15 ft, 130 Deg C

Selected 3M, Splicing Tape, Rubber, Black, 1-1/2 Inch x 15 ft, 130 Deg C
3M, Splicing Tape, Rubber, Black, 1-1/2 Inch x 15 ft, 130 Deg C

Documents

Short Description

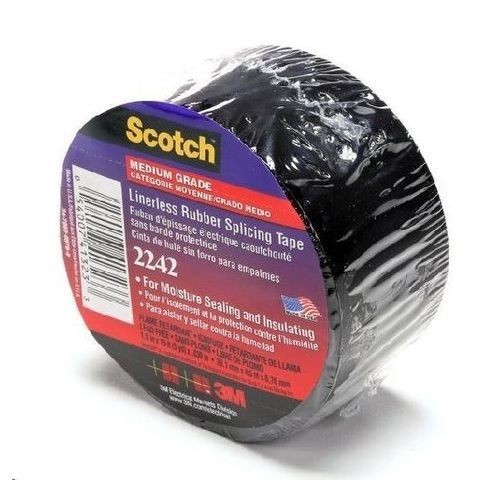

Scotch™ 2242 Electrical Tape is an economical, general purpose, rubber tape. The tape is a highly conformable, linerless EPR (Ethylene Propylene Rubber) based electrical insulating tape. The tape is designed for use in splicing and terminating wires and cables rated up to 90 deg C. The tape will meet industry specifications for flame retardance and has the necessary physical and electrical properties to provide immediate moisture seals and void–free build up.

Features

  • Linerless, self-bonding, insulating tape
  • Ethylene propylene base
  • Flame retardant
  • Physical and electrical properties unaffected by degree of stretch
  • Uniform tape unwind from roll
  • Small roll size (OD)
  • Five year shelf life
  • Stable over wide application temperature range
  • Weather Resistant
  • 100 percent ultimate elongation

Specification

Length
15 ft
Material
Ethylene Propylene Rubber
Series
2242
Shape
Roll
Temperature Rating
0 to 194 deg F
Thickness
30 mil
Type
Linerless Premium
Application
For primary insulation for cable splices and terminations, moisture sealing and insulating electrical connections, bus bar insulation, moisture–sealing of cable ends, motor leads, wire and cable jacket repair
Standard & Approvals
ASTM D-4388 Type 1, 2 and 3, RoHS Compliant
Color
Black
Di-Electric Strength
750 V/mil
Backing Material
Rubber
Adhesive Material
Rubber Resin
Adhesion Strength
7.5 in-lb
Width
1-1/2 in
Tensile Strength
250 psi
