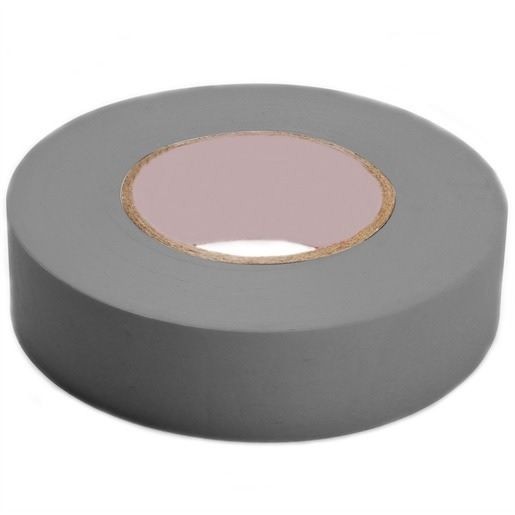

3M™, Scotch 35, Electrical Color Coding Tape, Vinyl, Gray, 1/2 Inch x 20 ft, 7 mil
3M™, Scotch 35, Electrical Color Coding Tape, Vinyl, Gray, 1/2 Inch x 20 ft, 7 mil
SKU: 3-M35-GRAY-1/2X20FT
Manufacturer Part Number: 054007-10281
UPC: 054007102816
Documents
Features
- Flame-retardant, resists UV rays, abrasion, moisture, alkalies, solvents, many acids
- Stretches to conform to virtually any shape that requires color-coded insulation
- Abrasion and weather-resistant, with excellent mechanical and electrical insulation properties
Specification
| Length | 20 ft |
|---|---|
| Temperature Rating | 32 - 220 deg F |
| Tensile Strength | 17 in-lb |
| Thickness | 7 mil |
| Type | Premium Grade |
| Voltage Rating | 600 VAC |
| Width | 1/2 in |
| Application | for phase identification, color coding of motor leads and piping systems and marking safety areas |
| Standard & Approvals | CSA Certified, UL Listed, RoHS 2011/65/EU compliant |
| Adhesion Strength | 20 in-oz |
| Adhesive Material | Rubber |
| Backing Material | PVC |
| Color | Gray |
| Dielectric Strength | 1250 V/mil |
