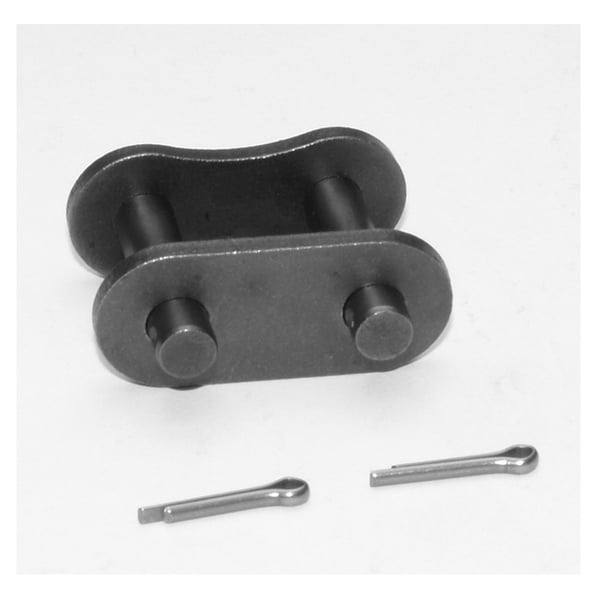

SENQCIA Inspire Series™ SBR® 20BCL British Standard Single Strand Cotter Pin Connecting Link, 20B Chain, 1-1/4 in Pitch, 1.73 in OAW, 0.4 in Dia Pin, Carbon Steel

Selected Senqcia Maxco 20BCL
Senqcia Maxco 20BCL

Short Description

SENQCIA Inspire Series™ SBR® cottered type British Standard connecting links are manufactured in Japan in accordance with the ISO 606B International roller chain standard. They offer exceptional performance and long life in a wide variety applications. Split cotters are supplied with slip fit closing plates for ease of assembly in the field. Closing plates are flat style to improve fatigue strength. Connecting links are used to connect the ends of the roller chain strand into an endless loop. Each connecting link is individually packaged in a sealed plastic bag.

Specification

Material
Carbon Steel
Link Plate Height
1.039 in
Type
British Standard Single Strand Cotter Pin
Pin Diameter
0.4 in
Overall Width
1.73 in
Chain Size
20B
Link Plate Thickness
0.177 in Inner/0.138 in Outer
Pitch
1-1/4 in
