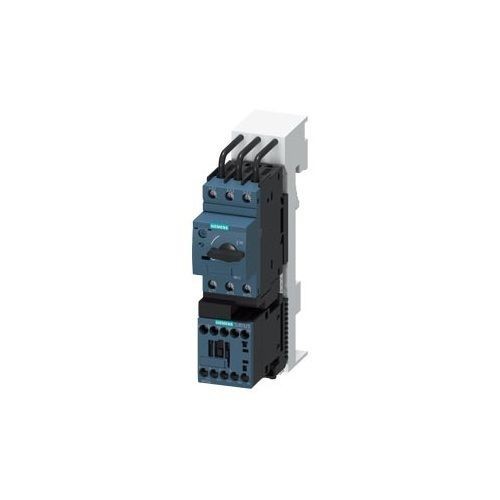

Siemens SIRIUS 3RA21101AD151BB4 SZ 00 Direct on Line Fuseless Load Feeder Starter, 24 VDC V Coil, 3 Poles, IP20 Enclosure
Siemens SIRIUS 3RA21101AD151BB4 SZ 00 Direct on Line Fuseless Load Feeder Starter, 24 VDC V Coil, 3 Poles, IP20 Enclosure
SKU: SIE3RA21101AD151BB4
Manufacturer Part Number: 3RA21101AD151BB4
EAN: 4011209796645
UPC: 662643898071
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Full Load Current | 1.6 A |
| Full Load Current Rating | 1.6 A |
| Motor Power | 3/4 hp |
| Number Of Poles | 3 |
| Operating Cycles | 30000000 Cycles |
| Operating Temperature | -20 to 60 deg C |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 1.5 A |
| Catalog ID | SIE3RA21101AD151BB4 |
| Coil Voltage | 24 VDC |
| Connection Type | Screw |
| Dimensions | 200 mm H x 45 mm W x 155 mm D |
| Enclosure Type | IP20 |
| Overload Relay | Class 10 Thermal Bimetal |
| Setting | 1.1 to 1.6 A |
| Type | SZ 00 Direct on Line Fuseless Load Feeder |
| Voltage Rating | 690 VAC |
| Wattage | 550 W |
| Standard & Approvals | CSA Certified, UL Listed, EAC Certified, ATEX Approved, CE Certified, ABS Approved, Bureau Veritas Certified, Lloyd's Register, PRS, RINA, RMRS, DNV-GL |
| EANUCC13 | 4011209796645 |
