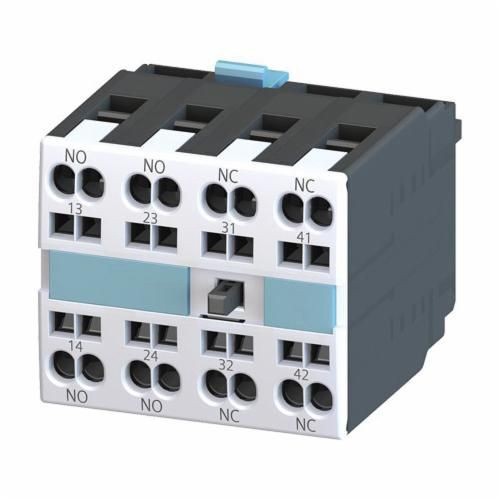

SIRIUS 3RH1921-2FA22 Auxiliary Switch Block, 690/600 VAC/VDC, 1/0.26 A, 4 Contacts
SIRIUS 3RH1921-2FA22 Auxiliary Switch Block, 690/600 VAC/VDC, 1/0.26 A, 4 Contacts
SKU: SIE3RH19212FA22
Manufacturer Part Number: 3RH1921-2FA22
EAN: 4011209281530
UPC: 754554416229
Documents
Features
- Cage clamp connection
- IP20 degree of protection
- 6 A/1 A at 24/690 VAC AC-15, 10 A/0.26 A at 24/600 VDC DC-13
- Snapping onto the front according to DIN EN 50005
- 2NO-2NC contact configuration
Specification
| Mounting Type | Snap-On |
|---|---|
| Operating Temperature | -25 to 60 deg C |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | SIE3RH19212FA22 |
| Dimensions | 38 mm H x 44 mm W x 51 mm D |
| Standard & Approvals | CCC, CSA, CE Certified, UL Listed, EAC Standard |
| Environmental Conditions | -55 to 80 deg C |
| Amperage Rating | 1/0.26 A |
| Operating Cycles | 200000 Cycles |
| Number of Contacts | 4 |
| EANUCC13 | 4011209281530 |
| Voltage Rating | 690/600 VAC/VDC |
| Suitable For Use With | Size S0 to Size S12 Contactor |
