Siemens SIRIUS 3RT20281NF30 3-Phase Non-Reversing IEC Contactor, 110 VAC/VDC Coil, 38 A, 3NO Contact, 3 Poles

Selected Siemens 3RT20261NP30

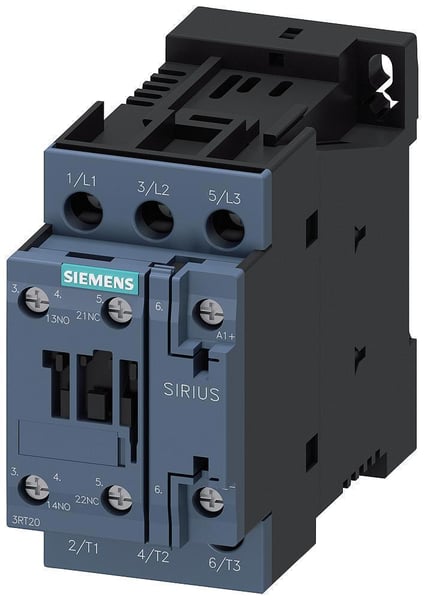

Siemens 3RT20261NP30

Documents

Short Description

The 3RT contactors are suitable for use in any climate. They are safe from touch to DIN VDE 0106 Part 100. The 3RT contactors are available screw, spring-type, or ring lug connections. An auxiliary contact is integrated in the basic unit of size S00 contactors. The basic units of sizes S0 to S3 only contain the main conducting paths. All the basic units can be extended with auxiliary switch blocks. Cabinet units with 2 NO + 2 NC (terminal designations acc. to EN 50 012) are available as of size S0; the auxiliary switch block is removable.

Features

  • 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil
  • Space is provided for them next to a snap-on auxiliary switch block
  • Contactors in size S00, S0 and S2 can be used to configure star-delta (wye-delta) starters simply by plugging in function modules, these can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
  • 10 hp at 200/208 VAC/220/230 VAC, 25 hp at 460/480 VAC/575/600 VAC

Specification

Contact Configuration
3NO
Dimensions
85 mm H x 45 mm W x 107 mm D
Maximum Load Current
38 A
Enclosure Type
IP20
Number of Auxiliary Contacts
2
Contact Rating
A600/Q600
Number Of Poles
3
Frequency Rating
40 to 60 Hz
Coil Power Rating
25 hp
Power Factor
0.98
Operating Cycles
10000000 Cycles
Wattage
18.5 kW
Terminal Type
Screw
Size
SZ 0
Mounting Type
DIN Rail/Snap-On/Threaded
Type
3-Phase Non-Reversing
Operating Temperature
-25 to 60 deg C
Coil Voltage
110 VAC/VDC
