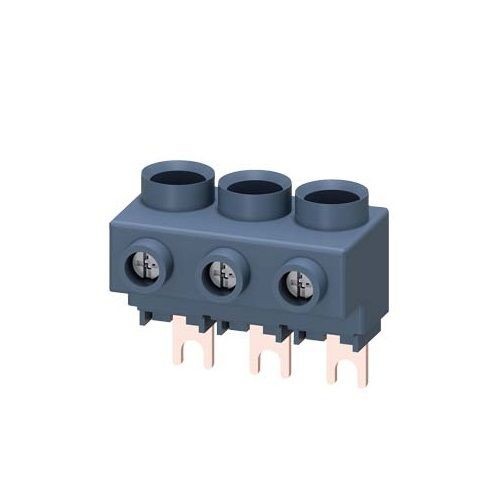

SIRIUS 3RV29255AB 3-Phase In-Feed Line Side Circuit Breaker Lug, 10 to 1 AWG, Screw Mount, For Use With Size S00/S0 Circuit Breaker
SIRIUS 3RV29255AB 3-Phase In-Feed Line Side Circuit Breaker Lug, 10 to 1 AWG, Screw Mount, For Use With Size S00/S0 Circuit Breaker
SKU: SIE3RV29255AB
Manufacturer Part Number: 3RV29255AB
EAN: 4011209718890
UPC: 662643925319
Documents
Features
- 690 VAC voltage rating
- 63 A current rating
Specification
| Height | 39 mm |
|---|---|
| Length | 27.2 mm |
| Mounting Type | Screw |
| Number of Ports | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=y9L0ZMtPwRU |
| Catalog ID | SIE3RV29255AB |
| Conductor Range | 10 to 1 AWG |
| Suitable For Use With | Size S00/S0 Circuit Breaker |
| Type | 3-Phase In-Feed Line Side |
| Width | 44.5 mm |
| Standard & Approvals | UL Listed, EAC Certified, CSA Certified, CE Certified |
| EANUCC13 | 4011209718890 |
