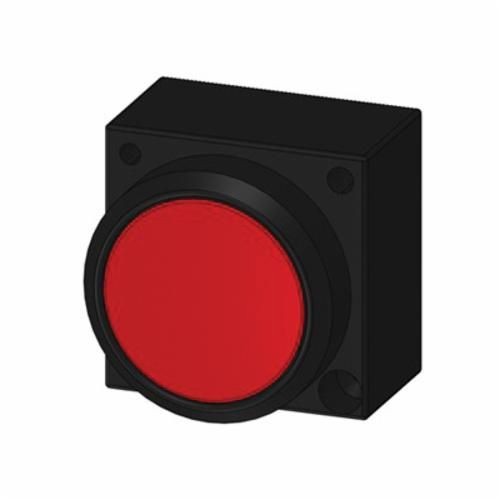

Siemens 3SB3000-0AA21 Non-Illuminated Pushbutton Operator With Holder, 22 mm, 2 Positions, Red

Selected 3SB3000-0AA21Siemens 3SB3000-0AA21 Non-Illuminated Pushbutton Operator With Holder, 22 mm, 2 Positions, Red
3SB3000-0AA21Siemens 3SB3000-0AA21 Non-Illuminated Pushbutton Operator With Holder, 22 mm, 2 Positions, Red

Documents

Short Description

The 3SB3 series is a modular range of commanding and signaling devices for front panel mounting and rear conductor connection. As an alternative, individual elements can also be supplied for use on printed circuit boards. Complete units are offered for the most commonly used applications.

Features

  • The devices are climateproof
  • Modular design, high degree of protection, communications capable, easy and quick installation and customization
  • 22 mm Dia x 8 mm H mounting
  • 28.5 mm W x 29 mm D installation
  • 10000000 operating cycles
  • Standard front ring
  • Flat button
  • Plastic actuating, front ring and holder

Specification

Material
Plastic
Mounting Type
Surface
Number of Positions
2
Series
3SB
Size
22 mm
Temperature Rating
-25 to 70 deg C
Terminal Type
Threaded
Standard & Approvals
CE Certified, CSA Certified, EAC Certified, UL File No. E44653 (Vol 11 Sec 4), IEC/EN Standard
Bezel/Housing
Plastic
Color
Red
Contact Mode
Momentary
Application
For standard industrial and marine applications
Terminal
Screw
Operator Type
Round Flush Button
Enclosure Type
NEMA 1/3/4X/12/IP66
EANUCC13
4011209029309
