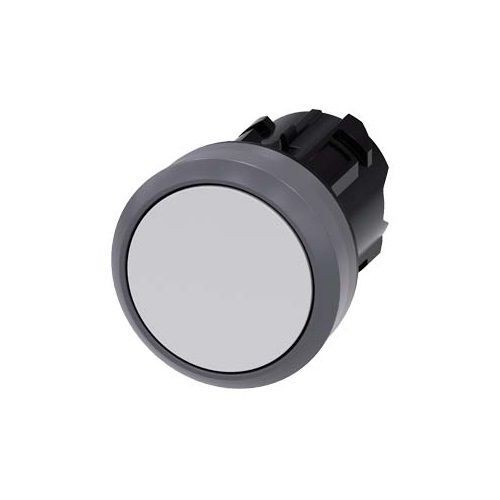

Siemens SIRIUS ACT 3SU10300AB600AA0 Round Non-Illuminated Pushbutton Operator, 22 mm, Sand Gray/White
Siemens SIRIUS ACT 3SU10300AB600AA0 Round Non-Illuminated Pushbutton Operator, 22 mm, Sand Gray/White
SKU: SIE3SU10300AB600AA0
Manufacturer Part Number: 3SU10300AB600AA0
EAN: 4011209972520
UPC: 804766064746
Short Description
Features
- Direct connection of the enclosure to AS-interface or IO-Link
- Direct connection in the control cabinet to PROFINET, IO-Link or AS-interface
- Can be integrated easily via TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- Media resistance (chemicals) thanks to solid stainless steel and high grade plastics
- Mechanical endurance of 10 x 10^6 operating cycles
- Reliable, friction locked fixing with just one screw
- Design stability according to use
- Simple geometry for mounting holes
- Without module and holder
Specification
| Material | Plastic |
|---|---|
| Mounting Type | Flush |
| Operator Type | Flat Button |
| Size | 22 mm |
| Temperature Rating | -25 to 70 deg C |
| Type | Round |
| Standard & Approvals | CSA Certified, UL Listed, EAC Certified, CE Certified, ABS Approved, Lloyd's Register, PRS Approved, RINA Approved, RMRS Approved, DNV-GL Approved, IEC 60947-1, IEC 60947-5-1, EN 60947-1, EN 60947-5-1, WEEE 2012/19/EU |
| Contact Mode | Momentary |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K |
| Finish | Matte |
| Color | Sand Gray/White |
| Bezel/Housing | Metal |
| Application | For use in extreme environments, standard industrial and operation in marine applications |
| Series | 3SU10 |
| EANUCC13 | 4011209972520 |
