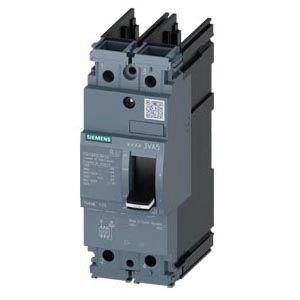

Siemens Sentron™ 3VA5125-4ED21-0AA0 Low Voltage Molded Case Circuit Breaker, 415 VAC, 250 VDC, 25 A, 14 kA at 600Y/347 V, 25 kA at 480 V, 65 kA at 240 V Interrupt, 2 Poles, Thermal/Magnetic Trip
Siemens Sentron™ 3VA5125-4ED21-0AA0 Low Voltage Molded Case Circuit Breaker, 415 VAC, 250 VDC, 25 A, 14 kA at 600Y/347 V, 25 kA at 480 V, 65 kA at 240 V Interrupt, 2 Poles, Thermal/Magnetic Trip
SKU: SIE3VA51254ED210AA0
Manufacturer Part Number: 3VA5125-4ED21-0AA0
UPC: 804766778322
Documents
Features
- Without lugs
- 3VA51 frame with standard (class S) breaking capacity
- TM210 trip unit with fixed Ir fixed Ii
Specification
| Frame | 3VA51 |
|---|---|
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 14 kA at 600Y/347 V, 25 kA at 480 V, 65 kA at 240 V |
| Number Of Poles | 2 |
| Temperature Rating | -40 to 70 deg C |
| Trip Type | Thermal/Magnetic |
| Type | Low Voltage Molded Case |
| Application | For switching power values in DC networks applications |
| Standard & Approvals | CE Marked, CSA Certified, VDE Approved, EAC Approved, UL Listed, RCM Approved, DIN EN 81346-2, ABS Approved, ECCN: EAR99, WEEE (2012/19/EU) |
| Amperage Rating | 25 A |
| Enclosure Type | IP40 |
| Voltage Rating | 415 VAC, 250 VDC |
| Dimensions | 5.5 in H x 2 in W x 3.7 in D |
