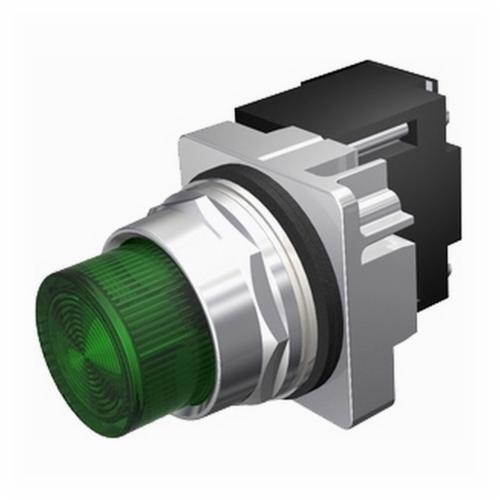

Siemens 52PL4E3 Command 52 Heavy Duty Non-Illuminated Pilot Light With 120 VAC/VDC Lamp, 120 VAC/VDC, Concentric Ring Lens, Panel Mount
Siemens 52PL4E3 Command 52 Heavy Duty Non-Illuminated Pilot Light With 120 VAC/VDC Lamp, 120 VAC/VDC, Concentric Ring Lens, Panel Mount
SKU: SIE52PL4E3
Manufacturer Part Number: 52PL4E3
UPC: 662643314380
Features
- New modular design
- Lighting modules, operators and lens can be ordered fully assembled or independently depending on your applications
- New ribbed concentric lens providing improved lighting distribution and aesthetic appeal
- Less mounting space BlackMax corrosion resistant line withstanding the harshest environments
- Silver contacts with gold flashing improving contact fidelity of all our contact blocks
- Automotive standards compliant
- Watertight and oil tight
- Corrosion resistant finish
- Chrome plated zinc die cast
- Full voltage module
Specification
| Lamp Type | Incandescent |
|---|---|
| Lens Color | Green |
| Lens Material | Plastic |
| Mounting Type | Panel |
| Series | Command 52 |
| Shape | Round |
| Size | 30 mm |
| Voltage Rating | 120 VAC/VDC |
| Standard & Approvals | CSA LR6535, UL File No. E22655 |
| Average Life | 5000 hr |
| Bezel/Housing | Die Cast Zinc |
| Environmental Conditions | -35 to 70 deg C |
| Type | Heavy Duty Non-Illuminated |
| Terminal Type | Locknut |
| Lumens | 3 Lumens |
| Lens Type | Concentric Ring |
| Enclosure Type | NEMA 1/3/3R/4/4X/12/13/IP66 |
| Base Type | BA9s |
