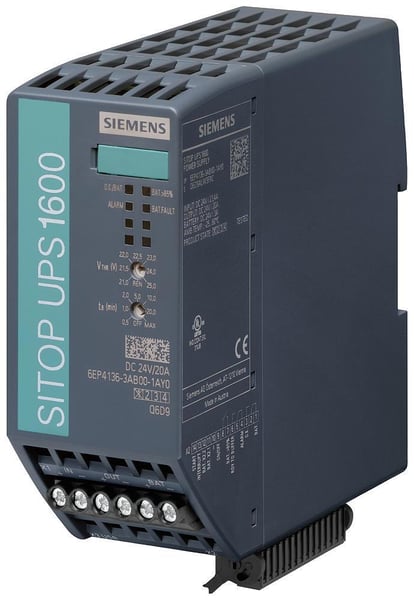

Siemens 6EP41363AB001AY0 SITOP 6EP/UPS1600 UPS Module, 24 VDC Input, 24 VDC Output, 480 W Power Rating, 34 min Half Load, 9 min Full Load Backup

Selected Siemens 6EP41363AB001AY0
Siemens 6EP41363AB001AY0

Documents

Short Description

The DC-UPS modules augment the SITOP 24 V power supply units for uninterruptible rated currents up to 40 A from the UPS1100 battery modules based on maintenance-free lead or LiFePo batteries. SITOP UPS1600 with its integrated electronics automatically detects the battery type that it charges with the optimum temperature-controlled charging characteristic curve. The intelligent battery management monitors all relevant data, also for parallel connected battery modules. The Ethernet/PROFINET interface is used to output the battery status and various actual values, such as voltage and current. Thanks to the integrated web server, remote diagnosis is also possible. The low profile SITOP UPS1600 DC-UPS module provides a dynamic overload behavior, for example, to switch on industrial PCs. The high charging current quickly restores the buffer readiness after a supply system failure. And for the deployment in stand-alone operation, the UPS can be activated from the battery for missing supply system voltage, e.g. to start the generators.

Features

  • All diagnostic data and alarm messages are available via USB and EtherNet/PROFINET
  • High dynamic overload capability - 3-fold rated current for 30 ms and 1.5-fold rated current for 5 s/min
  • High charging currents
  • Start from battery modules for missing supply system voltage
  • Remote monitoring with integrated web server
  • SITOP UPS manager (free software download) supports the configuration and monitoring for PC-based systems
  • Complete integration in TIA - user friendly engineering in the TIA portal, S7 function blocks for integration in user programs and WinCC faceplates

Specification

Backup Time
34 min Half Load, 9 min Full Load
Series
SITOP 6EP/UPS1600
Environmental Conditions
-25 to 70 deg C Operating Temperature, -40 to 85 deg C Transport Temperature, -40 to 85 deg C Storage Temperature
Output Voltage
24 VDC
Mounting Type
DIN Rail
Enclosure Type
IP20
Display Type
LED
Input Voltage
24 VDC
Power Rating
480 W
Interface
USB
Dimensions
139 mm H x 50 mm W x 125 mm D
