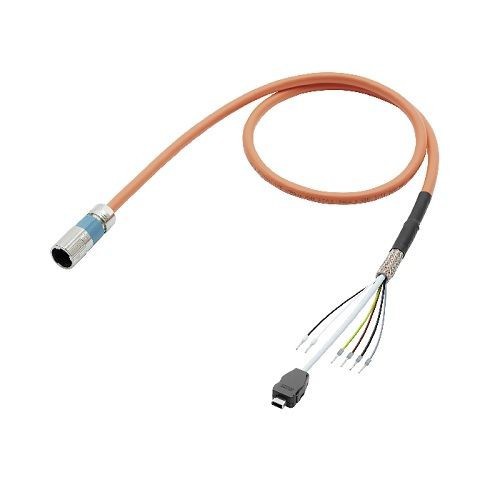

Siemens MOTION-CONNECT® 500 6FX50028QN081AF0 Pre-Fabricated Signal Cable With End Sleeve Data Cable, 30 VAC, (10) 0.75 sq-mm, 0.5 sq-mm, 0.2 sq-mm, 5 m L

Selected Siemens MOTION-CONNECT® 500 6FX50028QN081AF0 Pre-Fabricated Signal Cable With End Sleeve Data Cable, 30 VAC, (10) 0.75 sq-mm, 0.5 sq-mm, 0.2 sq-mm, 5 m L
Siemens MOTION-CONNECT® 500 6FX50028QN081AF0 Pre-Fabricated Signal Cable With End Sleeve Data Cable, 30 VAC, (10) 0.75 sq-mm, 0.5 sq-mm, 0.2 sq-mm, 5 m L

Short Description

MOTION-CONNECT® cables and connections are the ideal solution for all those who wish to use high quality, system tested power and signal cables on their machine. Our solution is characterized by lots of highly convincing features, such as an EMC compatibility test of the complete system (controller, inverter, motor and cables), vibration resistance and all relevant functions. MOTION-CONNECT® cables provides state of the art cables and connections (DRIVE-CLiQ, SPEED-CONNECT) for your motion control systems.

Features

  • Robust and user friendly
  • Superior quality and system responsibility

Specification

Jacket Material
PVC
Minimum Order Qty
1
Order Interval
1
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 758, CSA C22.2-N.210.2-M90, CE Certified, EN 60332-1-1, EN 60332-1-3
Conductor Size
0.75 sq-mm, 0.5 sq-mm, 0.2 sq-mm
Catalog ID
SIE6FX50028QN081AF0
Outside Diameter
10.5 mm
Number of Conductors
10
Length
5 m
Jacket Color
Green
Insulation Material
CFC
Application
Production machines and machining centers with permanently routed cable or cable drags and are used whenever components with DRIVE-CLiQ connection must meet high requirements such as mechanical stress and oil resistance
Voltage Rating
30 VAC
Type
Pre-Fabricated
Temperature Rating
-4 to 176 deg F
End Style
M17 SPEED-CONNECT Connector
