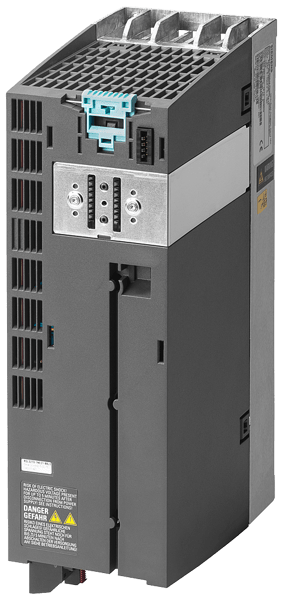

Siemens 6SL32101PE227UL0 SINAMICS G120 3-Phase Power Module With Built-In Braking Chopper, 380 to 480 VAC Input, 400 VAC Output, 32.6 A Input, 26 A Output

Selected 6SL32101PE227AL0Siemens 6SL32101PE123AL1 SINAMICS G120 3-Phase Power Module With Integrated Class A Filter and Integrated Braking Chopper, 380 to 480 VAC Input, 400 VAC Output, 2.9 A Input, 2.2 A Output
6SL32101PE227AL0Siemens 6SL32101PE123AL1 SINAMICS G120 3-Phase Power Module With Integrated Class A Filter and Integrated Braking Chopper, 380 to 480 VAC Input, 400 VAC Output, 2.9 A Input, 2.2 A Output

Documents

Short Description

Whether pumping, ventilating, compressing, moving or processing, the SINAMICS G120 is the universal drive to address the widest range of application requirements. It leverages its strengths in general machinery construction, as well as in the automotive, textile and packaging industries. Its modular design and wide range of power ratings extending from 0.55 up to 250 kW (0.75 to 400 hp) always ensures that you can configure the perfect drive for your application. With SINAMICS G120, you will benefit from the wide range of possibilities that its modular design offers - including flexibility and cost-savings, thanks to the need for reduced spare parts. All of this is complemented by its user-friendliness - from installation through maintenance.

Features

  • Extremely compact design
  • Significantly smaller than previous generation
  • Positioning capability
  • Comprehensive range of encoder interfaces
  • Power modules with low line harmonics
  • Energy recovery into the line supply without requiring additional modules
  • Application-oriented control modules with expanded I/O quantity scope and wide range of functionality
  • Modular design
  • Innovative cooling concept for a higher degree of flexibility
  • Without control unit and panel

Specification

Input Voltage
380 to 480 VAC
Output Voltage
400 VAC
Minimum Order Qty
1
Order Interval
1
Series
SINAMICS G120
Specifications
IP20/Open
Temperature Rating
-10 to 50 deg C
Type
3-Phase
Standard & Approvals
CE Certified, C-TICK Certified, cUL Listed, SEMI F47, UL Listed
EANUCC13
4042948666104
Powering Capacity
11 kW
Power Dissipation
0.3 kW
Dimensions
140 mm W x 165 mm D x 355 mm H
Catalog ID
SIE6SL32101PE227UL0
Output Current
26 A
Input Current
32.6 A
