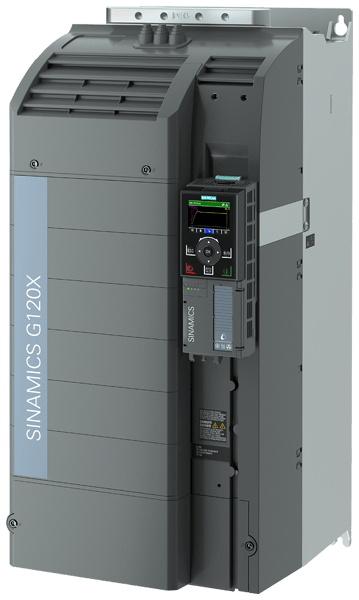

Siemens SINAMICS 6SL32203YE420UB0 G120X 3-Phase Infrastructure Converter, 380 to 480 VAC, 140 A Input, 124 A Output

Selected 6SL32203YE440UF0Siemens SINAMICS 6SL32203YE440UB0 G120X 3-Phase Infrastructure Converter, 380 to 480 VAC, 172 A Input, 156 A Output
6SL32203YE440UF0Siemens SINAMICS 6SL32203YE440UB0 G120X 3-Phase Infrastructure Converter, 380 to 480 VAC, 172 A Input, 156 A Output

Documents

Short Description

Easy handling, utmost reliability, superior efficiency and advanced digitalization - Siemens offers an answer to these trends with the SINAMICS G120X converter series. SINAMICS G120X is an innovative and user friendly converter series that has been specifically developed for applications performed in infrastructure environments such as water/wastewater, but also for tasks in building automation. In this context, the converter supports, for example, pump, fan and compressor applications through numerous integrated functionalities and combines these in one device for the target sectors. The SINAMICS G120X converter is an integrated and efficient drive solution for a wide range of tasks. The system allows convenient handling through optimized user interfaces - IOP-2 intelligent operator panel with graphic color display and the optional web server module SINAMICS G120 Smart Access - a Wi-Fi based web server solution. Thus, the SINAMICS G120X fulfils the request for an easy and fast setup of the devices during the commissioning phase. Further, experienced users can use the full flexibility of a SINAMICS converter and adjust the relevant application to their requirements.

Features

  • Power units with DC link reactor for extremely high active power component thanks to efficient converter topology - for the same drive power, the converter requires a lower line current than comparable converters
  • Flux reduction through automatic adaptation of the motor current to the prevailing load conditions with closed loop control modes V/f (ECO) and vector without sensor (SLVC) and savings of up to 5% under partial load conditions
  • Hibernation mode dependent on setpoints in the process
  • Without extension, integrated line filter

Specification

Minimum Order Qty
1
Order Interval
1
Finish
Painted
Type
3-Phase
Width
305 mm
Standard & Approvals
C-TICK Certified, CE Certified, cULus Listed, EAC Certified, ECCN:3A999A, IEC 60721-3-3: 2002 Class 3C2, KC4 Approved, REACH Article 33, UL Listed, WEEE 2012/19/EU
Voltage Rating
380 to 480 VAC
Series
G120X
Enclosure Type
IP20/Open
Depth
360 mm
Catalog ID
SIE6SL32203YE420UB0
Amperage Rating
140 A Input, 124 A Output
Mounting Type
Side by Side/Wall
Horsepower
100 hp
Height
709 mm
EANUCC13
4042948688311
