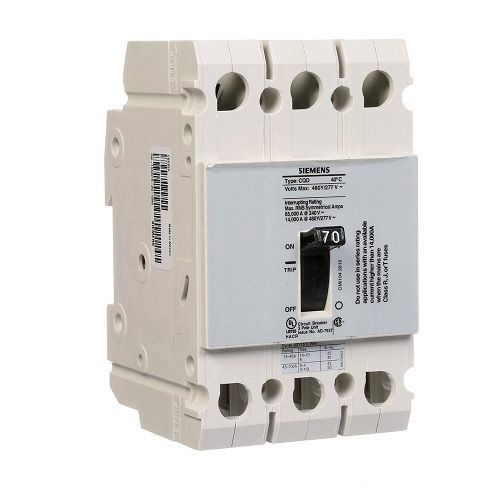

Siemens CQD370 Type CQD Low Voltage Molded Case Circuit Breaker, 277/480 VAC, 70 A, 14 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
Siemens CQD370 Type CQD Low Voltage Molded Case Circuit Breaker, 277/480 VAC, 70 A, 14 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
SKU: SIECQD370
Manufacturer Part Number: CQD370
UPC: 783643277823
Documents
Features
- 8 to 1 AWG copper, 6 to 1/0 AWG aluminum wire
Specification
| Frame | 100 A |
|---|---|
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 14 kA |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Phase | 3 |
| Temperature Rating | 40 deg C |
| Trip Type | Thermal/Magnetic |
| Type | Type CQD Low Voltage |
| Voltage Rating | 277/480 VAC |
| Wire Size | 8 to 1 AWG, 6 to 1/0 AWG |
| Application | Industrial and General Purpose Applications |
| Standard & Approvals | UL 489, CSA C22.2 |
| Amperage Rating | 70 A |
| Dimensions | 5.5 in L x 4.4 in W x 3.3 in H |
| Actuator Type | Handle |
| Connection Type | Cable-In/Cable-Out |
