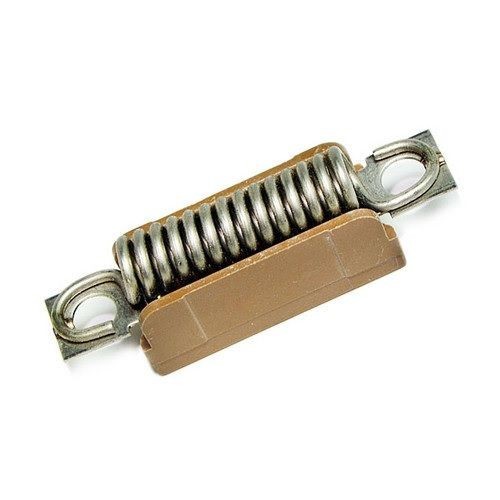

Siemens K54 Overload Heater

Selected Siemens K54 Overload Heater
Siemens K54 Overload Heater

Documents

Features

  • Ambient compensated heater
  • 13.6 to 15.1 A for size 00, 0, 1, 13.6 to 15.1 A for size 1P class 14 (1-phase), 13.4 to 14.1 A for 48DA, 12.2 to 12.9 A for 48GA class 48 (1-phase)
  • 10.8 to 11.6 A for size 00, 0, 1, 1.75, 12.1 to 12.7 A for size 2, 2.5 class 14, 17, 18, 22, 25, 26, 30, 32, 83, 84, 87 (3-phase), 12.1 to 12.7 A for 48DC class 48 (3-phase)

Specification

Minimum Order Qty
1
Order Interval
1
Trip Type
Class 10
Material
Class 14 Bi-Metal
Full Load Current Rating
13.6 - 15.1 A
Full Load Current
13.6 to 15.1 A
Enclosure Type
NEMA 00/0/1/1P
Catalog ID
SIEK54
