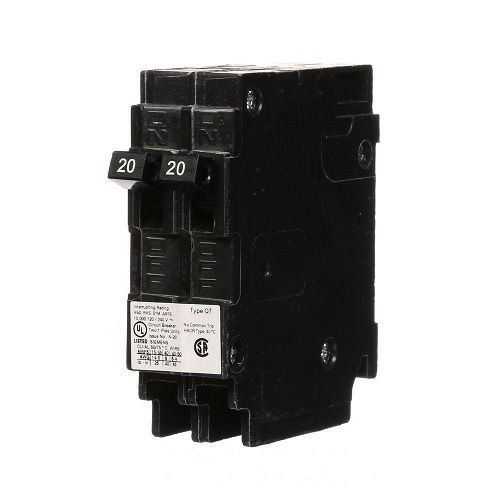

Siemens Q2020NC Type QT Duplex Low Voltage Miniature Non-Current Limiting Molded Case Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
Siemens Q2020NC Type QT Duplex Low Voltage Miniature Non-Current Limiting Molded Case Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
SKU: SIEQ2020NC
Manufacturer Part Number: Q2020NC
UPC: 783643156623
Documents
Features
- These space saver duplex breakers combine two independent 1/2 in breaker poles in a common unit
- This unit plugs into one loadcenter stab and requires one panel space
- Siemens 2-pole duplex circuit breaker features high quality thermal magnetic case for extra protection
- Circuit breaker has toggle type switch and offers long time instantaneous functions to perform efficiently
- It is ideal to use in Siemens EQ, ultimate, ITE and Gould loadcenters
- It offers circuit limiting with rejection clip and uses plug-in mounting to hold firmly
- 14 to 6 AWG copper aluminum wire range
- 20 to 20 A
Specification
| Frame | QT |
|---|---|
| Frequency Rating | 60 Hz |
| Interrupt Rating | 10 kA |
| Number Of Poles | 1 |
| Phase | 1 |
| Temperature Rating | 40 deg C |
| Trip Type | Thermal/Magnetic |
| Type | Type QT Duplex Low Voltage Miniature Non-Current Limiting |
| Voltage Rating | 120 VAC |
| Wire Size | 14 to 6 AWG |
| Application | Electrical Distribution and Residential Applications |
| Standard & Approvals | UL 489, HACR Rated |
| Amperage Rating | 20 A |
| Dimensions | 3 in L x 2 in W x 3 in H |
| Actuator Type | Toggle |
| Connection Type | Plug-In |
