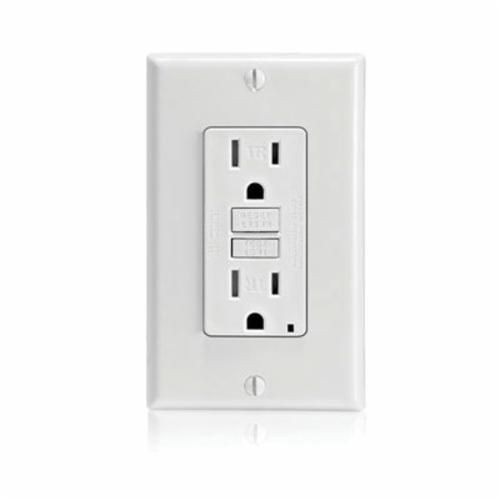

Leviton® GFTR1-T Duplex Feed Through Self-Test Slim Standard Tamper Resistant GFCI Receptacle With Light Almond Test, Reset Button, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond

Selected GFTR1-ELeviton® GFTR1-T Duplex Feed Through Self-Test Slim Standard Tamper Resistant GFCI Receptacle With Light Almond Test, Reset Button, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond
GFTR1-ELeviton® GFTR1-T Duplex Feed Through Self-Test Slim Standard Tamper Resistant GFCI Receptacle With Light Almond Test, Reset Button, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond

Documents

Short Description

Peace of mind, all the time. The SmartlockPro® Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton® patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro® Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.

Features

  • Provides continuous ground fault protection detects and trips on actual ground fault even when self test is being conducted
  • On initial power up, tests the GFCI within 3 s
  • Auto monitoring exceeds the UL requirement
  • Auto adapts and shifts to more frequent testing if potential problem is detected
  • Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
  • Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
  • Electronics are designed to minimize any false triggers
  • Reduced depth makes it easier to install in any electrical box, even shallow ones
  • External back wire clamps provide visual indication of proper wire seating
  • Withstands high torque and resists wire pullout
  • Standard brass self grounding clip
  • Trip threshold meets or exceeds UL requirements for tripping time
  • Improved immunity to high frequency noise reduces nuisance tripping
  • Advanced electronics design provides superior resistance to electrical surges and over voltages
  • Compatible with all Decora® devices and wallplates

Specification

Grade
Commercial/Residential/Specification
Material
Polycarbonate
NEMA Rating
NEMA 5-15R
Number Of Poles
2
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Video
https://youtu.be/T-1fWxB5WtA?rel=0
Amperage Rating
20 A
Catalog ID
LEVGFTR1-T
Color
Light Almond
Dimensions
4.21 in H x 1.69 in W x 1.4 in D
Temperature Rating
-35 to 66 deg C
Terminal Type
Back and Side Wired
Type
Feed Through Self Test Slim Standard Duplex Tamper Resistant
Voltage Rating
125 VAC
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, ANSI C-73, CSA C22.2 No. 42, 144.1-06, CSA LR-57811, Federal Specification WC-596, MIL-SPEC A-A-55459-SB, NOM Certified, UL 498, UL 943, UL File No. E48380
Includes
Screws and Self-Grounding Clip
Horsepower
1 hp
