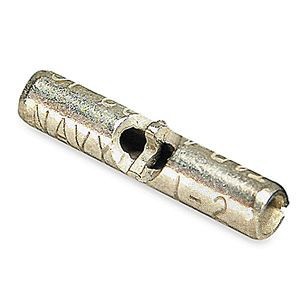

Sta-Kon® 0.000002 Non-Insulated Butt Splice Connector, 6 to 5 AWG Conductor, 1.12 in L, Copper, Metallic

Selected Sta-Kon® 0.000002 Non-Insulated Butt Splice Connector, 6 to 5 AWG Conductor, 1.12 in L, Copper, Metallic
Sta-Kon® 0.000002 Non-Insulated Butt Splice Connector, 6 to 5 AWG Conductor, 1.12 in L, Copper, Metallic

Documents

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Features

  • Wires are butted together and crimped at each end of the splice
  • Color coded according to wire size
  • Metallic color
  • 200/Pack

Specification

Material
Copper
Minimum Order Qty
20
Conductor Size
6 to 5 AWG
Finish
Electro-Tin Plated
Temperature Rating
150 deg C
Type
Non-Insulated
Voltage Rating
600 VAC
Order Interval
20
Dimensions
0.37 in W
Catalog ID
T-B2E-6
Length
1.12 in
Standard & Approvals
CSA Certified, UL Listed
