Sta-Kon® F2024 F Series Insulated Wire Ferrule, 18 AWG Stranded Copper Conductor, 0.551 in L, Copper, Gray

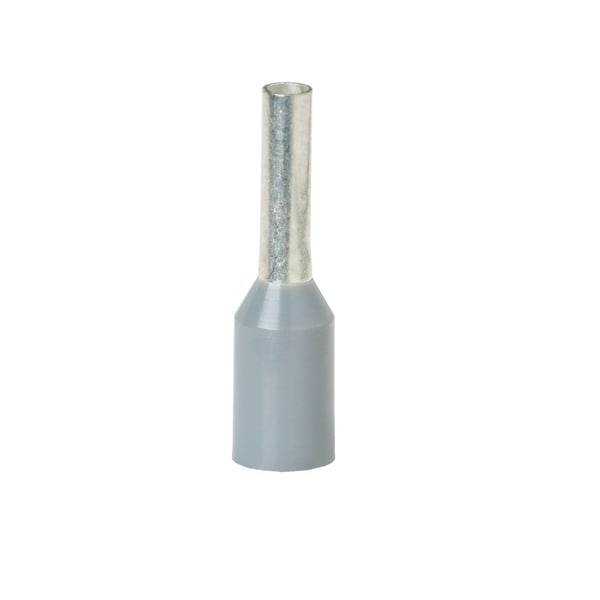

Selected F2040Sta-Kon® F2026 F Series Insulated Wire Ferrule, 18 AWG Stranded Copper Conductor, 0.709 in L, Copper, Gray
F2040Sta-Kon® F2026 F Series Insulated Wire Ferrule, 18 AWG Stranded Copper Conductor, 0.709 in L, Copper, Gray

Documents

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.

Features

  • Polypropylene insulated
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks
  • Made of high conductivity copper
  • Fraying and breaking of wire strands is prevented and the possibility of an unreliable connection is minimized
  • Insulated ferrules prevent conductor breakage due to bending, wire stress or vibration, while facilitating wire insertions into the terminal block clamp
  • Ferrules are the preferred alternative to twisting wire stands or tinning the wire end before terminating into a terminal block
  • Ferrules are thin-walled copper tubes, which are mechanically crimped onto the ends of stranded wires
  • Meets emerging global standards, requiring wire to metric-style terminal block installations to be terminated with a "pin" style terminal
  • T1, T3 and ERG4 recommended tools

Specification

Length
0.551 in
Material
Copper
Series
F Series
Specifications
0.051 in ID x 0.315 in L x 0.006 in THK Pin, 0.11 in Dia Base
Temperature Rating
105 deg C
Type
Insulated
Voltage Rating
300 VAC
Standard & Approvals
DIN 46228 Part 4, UL File No. E489056
Conductor Size
18 AWG
Barrel Size
0.11 in Dia
Barrel Type
Standard
Color
Gray
Conductor Type
Stranded Copper
EANUCC13
5415022254693
Finish
TiN Coated
