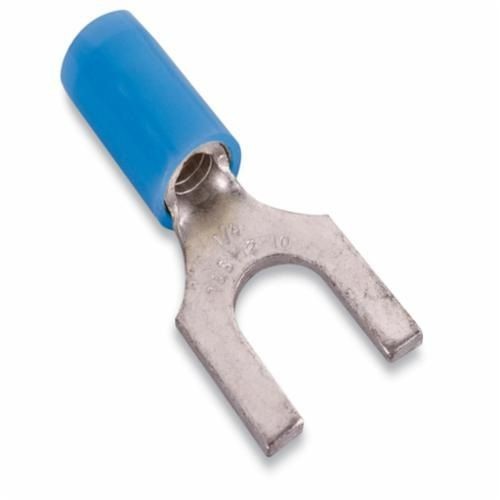

Sta-Kon® RB14-10FL RB Series Insulated Fork Terminal, 18 to 14 AWG Conductor, 0.87 in L, Brazed Seam/Serrated Barrel, Copper, Blue

Selected Sta-Kon® RB14-10FL RB Series Insulated Fork Terminal, 18 to 14 AWG Conductor, 0.87 in L, Brazed Seam/Serrated Barrel, Copper, Blue
Sta-Kon® RB14-10FL RB Series Insulated Fork Terminal, 18 to 14 AWG Conductor, 0.87 in L, Brazed Seam/Serrated Barrel, Copper, Blue

Short Description

Wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects

Features

  • Nylon insulated
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
  • Brazed-seam barrel is serrated for high pull-out value
  • Insulation is color-coded
  • Recommended tools WT112M, WT145A, WT145C, WT2000, ERG4001, ERG4003
  • 100/Pack, 500/Pack, Standard

Specification

Material
Copper
Minimum Order Qty
1
Order Interval
1
Barrel Type
Brazed Seam
Catalog ID
T-BRB14-10FL
Color
Blue
Conductor Size
18 to 14 AWG
Temperature Rating
105 deg C
Voltage Rating
600 VAC
Length
0.87 in
Standard & Approvals
CSA Certified, RoHS Compliant, UL 94 V-2 Flammability Rating , UL E9809 Listed
Tongue Size
0.29 in W x 0.03 in THK
Stud Size
#10
Specifications
0.162 in Dia Maximum Insulation, 1/4 in Clearance
Series
RB
Finish
Electro-Tin Plated
Type
Insulated Locking
Tongue Type
Fork
