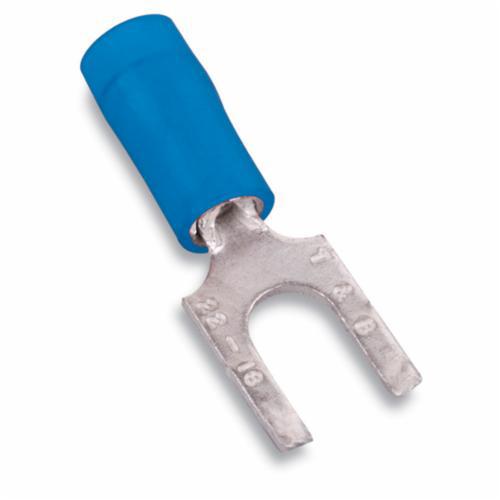

Sta-Kon® RB14-8FS RB Series Insulated Fork Terminal, 18 to 14 AWG Conductor, 0.89 in L, Brazed Seam/Serrated Barrel, Copper, Blue

Selected RB14-8FSSta-Kon® RB14-8FS RB Series Insulated Fork Terminal, 18 to 14 AWG Conductor, 0.89 in L, Brazed Seam/Serrated Barrel, Copper, Blue
RB14-8FSSta-Kon® RB14-8FS RB Series Insulated Fork Terminal, 18 to 14 AWG Conductor, 0.89 in L, Brazed Seam/Serrated Barrel, Copper, Blue

Documents

Short Description

Wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects

Features

  • Nylon insulated
  • Fork terminals allow easy installation because screw needs only to be loosened
  • Brazed-seam barrel is serrated for high pull-out value
  • Insulation is color-coded
  • A flanged-tongue fork with turned up tips provide extra holding protection
  • Recommended tools WT112M, WT145A, WT145C, WT2000, ERG4001, ERG4003
  • 100/Pack, 500/Pack, Standard

Specification

Material
Copper
Barrel Type
Brazed Seam
Color
Blue
Conductor Size
18 to 14 AWG
Finish
Electro-Tin Plated
Specifications
0.162 in Dia Maximum Insulation, 0.23 in Clearance
Temperature Rating
105 deg C
Voltage Rating
600 VAC
Standard & Approvals
CSA Certified, RoHS Compliant, UL 94 V-2 Flammability Rating , UL E9809 Listed
Order Interval
100
Minimum Order Qty
100
Length
0.89 in
Type
Insulated Flanged
Tongue Type
Flanged Fork
Tongue Size
0.31 in W x 0.03 in T
Stud Size
NO 8
Series
RB
Catalog ID
T-BRB14-8FS
