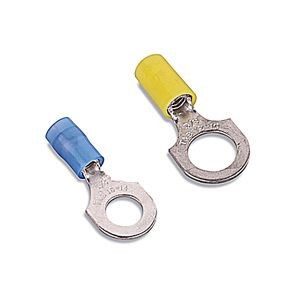

Sta-Kon® RC363M RC Series Insulated Ring Terminal, 12 to 10 AWG Conductor, 1 in L, Insulation Grip Sleeve Barrel, Copper, Yellow

Selected Sta-Kon® RC363M RC Series Insulated Ring Terminal, 12 to 10 AWG Conductor, 1 in L, Insulation Grip Sleeve Barrel, Copper, Yellow
Sta-Kon® RC363M RC Series Insulated Ring Terminal, 12 to 10 AWG Conductor, 1 in L, Insulation Grip Sleeve Barrel, Copper, Yellow

Documents

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Features

  • Nylon insulated, self-insulated with high dielectric-strength nylon sleeves
  • An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
  • Made of copper and has electro-tin plating for high conductivity/corrosion resistance
  • On mylar tape
  • Suitable for use with WT2000, WT112M, WT145C, ERG4001, ERG4003, WT145A, 12050 tools
  • 500 Pieces/Pack

Specification

Length
1 in
Material
Copper
Series
RC
Specifications
0.21 in Maximum Insulation Dia, 0.27 in Clearance
Stud Size
NO 10
Temperature Rating
105 deg C
Tongue Size
0.37 in W x 0.04 in T
Tongue Type
Ring
Type
Insulated
Voltage Rating
600 VAC
Application
For Automotive, Panelboard, Telecommunications, Wiring Harness and Wiring Terminations or Connections
Standard & Approvals
CSA Certified, RoHS compliant, UL listed, UL 94 V-2 Flammability Rating
Conductor Size
12 to 10 AWG
Barrel Type
Insulation Grip Sleeve
Color
Yellow
Finish
Tin Plated
