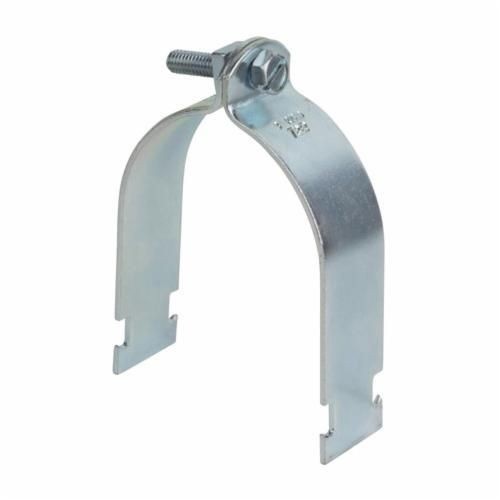

Superstrut® 702-1/2-EG 700 Pipe Strap, 1/2 in Nominal, Steel

Selected 702-3-1/2-EGSuperstrut® 702-2-EG 700 Pipe Strap, 2 in Nominal, Steel
702-3-1/2-EGSuperstrut® 702-2-EG 700 Pipe Strap, 2 in Nominal, Steel

Documents

Short Description

Superstrut®, with a full compliment of fittings, hardware and accessories to complete any metal framing job, is the only system of its kind to provide multiple finishes for total corrosion protection.

Features

  • Bolt head is combination slot and hex head for flexibility of attachment
  • Square nut is captivated on the shoulder for easy one-handed tightening
  • Straps are interchangeable with 1-1/2 in strut, for broader application
  • Straps are shipped assembled so counting and sorting are easier
  • Pipe and conduit sizes are shown on the strap for easy identification
  • Designed to be twist inserted anywhere along the slot side of the channel
  • 750 lbs design load
  • 3 safety factor
  • 2 piece construction
  • 14 ga Steel

Specification

Material
Steel
Mounting Type
2-Hole
Minimum Order Qty
1
Order Interval
1
Catalog ID
S-S702-1/2-EG
Color
Silver
Dimensions
0.84 in OD
Finish
Electro Galvanized
Series
700
Size
1/2 in
Suitable For Use With
IMC/Rigid Conduit, Pipe and Electrical Metal Tubing
Standard & Approvals
CSA Certified, RoHS Compliant
