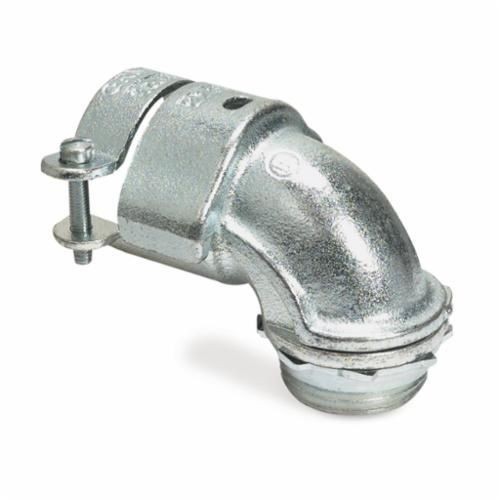

T&B® 276 Non-Insulated Squeeze Conduit Connector, 2 in Trade, 2-1/8 to 2-1/2 in Cable Openings, For Use With Armored Cable and Flexible Metal Conduits, Malleable Iron, Zinc Plated

T&B® 276 Non-Insulated Squeeze Conduit Connector, 2 in Trade, 2-1/8 to 2-1/2 in Cable Openings, For Use With Armored Cable and Flexible Metal Conduits, Malleable Iron, Zinc Plated
SKU: T-B276
Manufacturer Part Number: 276
UPC: 786210002767
Documents
Short Description
Features
- 2.125 - 2.5in conductor range
- Cap lifts off by simply loosening screws part way, only two screws to tighten
- 4-1/2 in thread length
- 2 in knockout
- Non-insulated
Specification
Standard & Approvals | UL E23018 Listed, CSA 2884 Certified, RoHS Compliant |
---|---|
Suitable For Use With | Armored Cable and Flexible Metal Conduit |
Trade Size | 2 in |
Cable Openings | 2-1/8 - 2-1/2 in |
Finish | Zinc Plated |
Angle | 90 deg |
Dimensions | 4-7/8 in L x 3-13/16 in W |
Color | Metallic |
Material | Malleable Iron |
