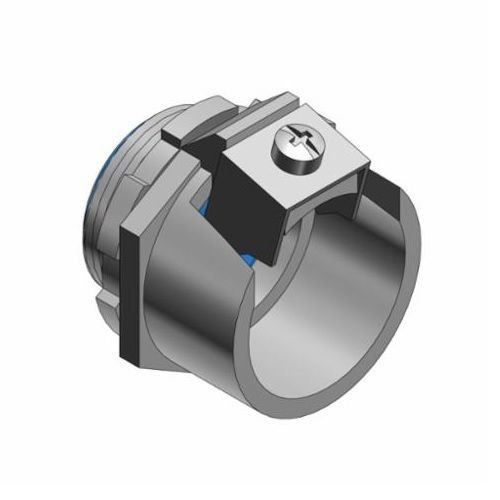

T&B® Tite-Bite® 3122 Insulated Cable Connector, 3 in Trade, 3 in Knockout, 3.312 to 3.562 in Cable Openings, Malleable Iron, Electro-Zinc Plated

Selected T&B® Tite-Bite® 3122 Insulated Cable Connector, 3 in Trade, 3 in Knockout, 3.312 to 3.562 in Cable Openings, Malleable Iron, Electro-Zinc Plated
T&B® Tite-Bite® 3122 Insulated Cable Connector, 3 in Trade, 3 in Knockout, 3.312 to 3.562 in Cable Openings, Malleable Iron, Electro-Zinc Plated

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Features

  • Unique saddle design firmly secures cable in place, provides holding power in excess of listing agency requirements and assures high quality bonding
  • To connect and effectively bond armored cable or flexible metal conduit to a box or an enclosure
  • Straight connection
  • Nylon insulated
  • The tough lining of insulation and the Tite-Bite principles make these connectors a must when conductors are subject to conditions of vibration or strain
  • Single cable opening
  • Angled-Saddle, screw connection
  • Zinc Electroplated

Specification

Standard & Approvals
UL E23018, CSA 2884, RoHs Compliant
Trade Size
3 in
Cable Openings
3.312 - 3.562 in
Cable Type
AC
Connection Type
Threaded
Knockout Size
3 in
Finish
Zinc Plated
Dimensions
3-1/4 in W x 5 in H
Color
Metallic
Material
Malleable Iron
