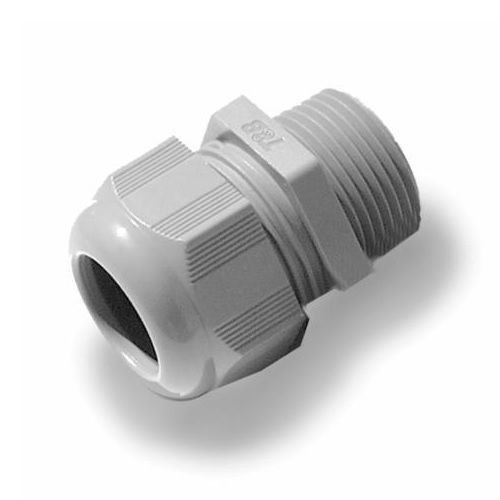

T&B® CC-PG7-G Non-Metallic Cable Gland, PG07 Thread, 0.118 to 0.256 in Dia Cable, 0.315 in L Thread, Nylon 6

Selected T&B® CC-PG7-G Non-Metallic Cable Gland, PG07 Thread, 0.118 to 0.256 in Dia Cable, 0.315 in L Thread, Nylon 6
T&B® CC-PG7-G Non-Metallic Cable Gland, PG07 Thread, 0.118 to 0.256 in Dia Cable, 0.315 in L Thread, Nylon 6

Documents

Short Description

T&B Nylon Cable Glands have a sturdy cable sealing mechanism that results in superior strain relief. The compact size ensures quick and easy installation in cramped spaces. The non-metallic construction provides excellent corrosion, chemical and impact resistance. The glands have long threads and locknuts are available.

Features

  • Flame-retardant UL94V-0
  • Rated IP68 5 BAR, suitable for NEMA 4 enclosures
  • Halogen free
  • Meets VDE ratings
  • Perfect for tight spots

Specification

Material
Nylon
Minimum Order Qty
1
Order Interval
1
Color
Gray
Thread Size
PG7
Thread Length
0.315 in
Temperature Rating
-30 to 80 deg C
Catalog ID
T-BCC-PG7-G
Cable Diameter
0.118 - 0.256 in
Standard & Approvals
UL E13938, CSA Certified, RoHs Compliant
