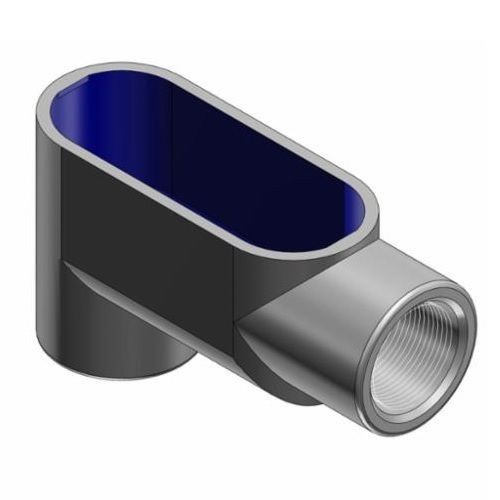

T&B® BlueKote® LB67 Type LB Conduit Body, 2 in Hub, Form 7 Form, 51 cu-in Capacity, Gray Iron, Epoxy Powder Coated/Zinc Plated

Selected T BLB67
T BLB67

Documents

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Features

  • Bluekote teflon based internal finish provides a slick, easy-glide internal surface which significantly lowers the amount of force necessary to pull wires
  • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
  • Triple-layer protection including two layers of epoxy coating which stops corrosion in its tracks
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
  • Zinc Plated With Epoxy Powder Coated finish

Specification

Hub Size
2 in
Material
Iron
Number of Hubs
2
Minimum Order Qty
1
Order Interval
1
Capacity
51 cu-in
Catalog ID
T-BLB67
Color
Gray
Connection Type
Threaded
Dimensions
8.3 in L x 3.1 in W x 4.45 in H
Finish
Zinc Plated
Form
7
Type
Type LB
Application
For act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
Standard & Approvals
UL E2969 Listed, RoHS Compliant
