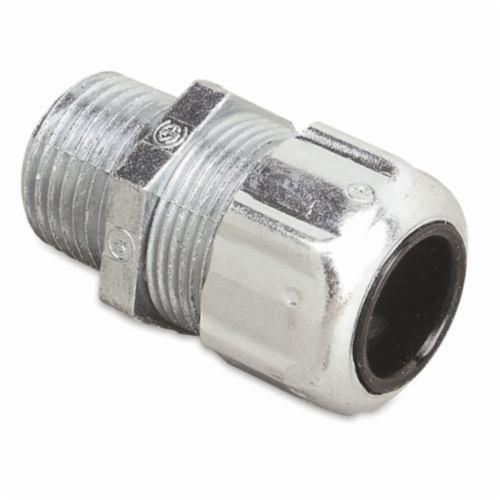

Thomas & Betts 2942 Strain Relief Straight Connector, 1 in Trade, 0.7 - 0.95 in Cable Openings, Steel, Zinc Plated

Selected 2942T&B® 2930 Ranger® Liquidtight Strain Relief Cord Connector, 3/4 in Trade, 1/8 to 3/8 in Cable Openings, Steel, Zinc Plated
2942T&B® 2930 Ranger® Liquidtight Strain Relief Cord Connector, 3/4 in Trade, 1/8 to 3/8 in Cable Openings, Steel, Zinc Plated

Documents

Short Description

The Ranger® Series Steel Liquidtight Connector takes twice the cable range of most ordinary strain relief connectors. T&B’s Ranger Connectors enable you to reduce your inventory and save time with one connector that can do the work of two.

Features

  • Extended range with superior strain relief
  • Reduced overall size, fits into tighter spaces
  • Gland nut designed to restrict cable bending
  • Suitable for ordinary, wet or dry locations
  • Suitable for use in hazardous locations where general purpose equipment is specifically permitted by NEC 501-4(b)
  • 31/32 in thread length
  • 31/32 in throat diameter
  • Liquidtight
  • S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD cable
  • Electro Zinc Plated With Chromate Coated

Specification

Material
Steel
Series
Ranger®
Trade Size
1 in
Type
Strain Relief
Standard & Approvals
UL 514, UL E13938 Listed, CSA LR-589, LR-4484, CSA. 22.2 No 18 Certified, ANSI C33.84, NFPA 70-1978 (ANSI), RoHs Compliant
Dimensions
1-7/8 in L x 1-5/8 in W
Cable Openings
0.7 - 0.95 in
Cable Type
S/SO
Color
Metallic
Connection Type
Threaded
Finish
Zinc Plated
Includes
Gland Nut, Grip and Rubber Bushing
