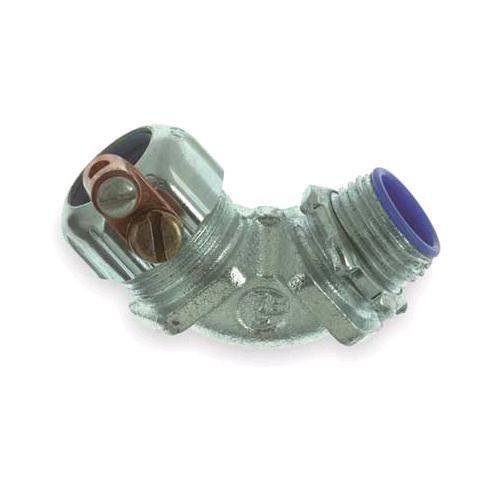

T&B® 5352GR External Bonding Insulated Grounding Connector With Revolver Lug, 1/2 in Trade, 90 deg, Malleable Iron, Chromate Coated/Electro-Zinc Plated

Selected T&B® 5352GR External Bonding Insulated Grounding Connector With Revolver Lug, 1/2 in Trade, 90 deg, Malleable Iron, Chromate Coated/Electro-Zinc Plated
T&B® 5352GR External Bonding Insulated Grounding Connector With Revolver Lug, 1/2 in Trade, 90 deg, Malleable Iron, Chromate Coated/Electro-Zinc Plated

Documents

Short Description

T&B® Liquid tight Fittings for flexible conduits are suitable for a wide range of installations. Our Liquid tight fittings are designed to stand up to demanding wet and corrosive environments, including power generation, petrochemical, paper mills, food, beverage, pharmaceutical plants and anywhere high performance is required.

Features

  • Designed with provision to install bonding jumper in several positions
  • Designed to accept mechanical or compression lug
  • Ability to install quickly with low torque effort
  • Used where flexible raceway is installed in outdoor or indoor locations where exposed to continuous or intermittent moisture
  • Used where external bonding jumper is required around liquid-tight flexible metal conduit
  • 9/16 in thread size
  • Chromate coated

Specification

Material
Malleable Iron
Trade Size
1/2 in
Standard & Approvals
CSA Certified, UL E3060, RoHS Complaint
Suitable For Use With
Flexible Raceway
Series
53
Angle
90 deg
Dimensions
1-7/16 in L x 1-3/8 in W
Finish
Zinc Electroplated
Type
Grounding Insulated
