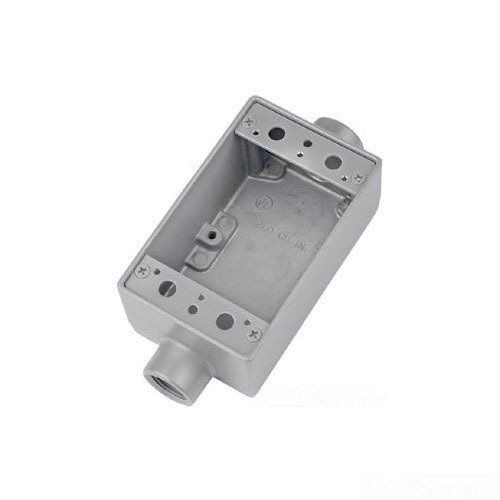

T&B® AFSC-1 Type FSC Feed-Through Shallow Style Device Box, Die Cast Aluminum, 21.6 cu-in Capacity, 1 Gangs, 2 Outlets, 1 Knockouts, 4-9/16 in H x 2-13/16 in W x 2-1/16 in D

Selected T&B® AFSC-1 Type FSC Feed-Through Shallow Style Device Box, Die Cast Aluminum, 21.6 cu-in Capacity, 1 Gangs, 2 Outlets, 1 Knockouts, 4-9/16 in H x 2-13/16 in W x 2-1/16 in D
T&B® AFSC-1 Type FSC Feed-Through Shallow Style Device Box, Die Cast Aluminum, 21.6 cu-in Capacity, 1 Gangs, 2 Outlets, 1 Knockouts, 4-9/16 in H x 2-13/16 in W x 2-1/16 in D

Features

  • Copper-free aluminum, stainless steel cover springs and hinge pins provide increased corrosion resistance
  • Die-cast construction, boxes with securely fastened mounting plates and industrial designed covers combine to produce a rugged protective enclosure for devices on industrial and OEM applications
  • Clean cover edges provide good gasket sealing
  • Precision NPT threaded hubs allow trouble-free field installation for rigid or IMC conduit
  • Clear UL, CSA and cubic content markings speed approval by inspectors
  • Boxes - external hub design provides increased wiring room
  • Covers ship complete with gaskets and screws
  • Industrial grade FS/FD device boxes and raintight covers protect wiring devices, switches, electronic components, and terminal blocks in dry, damp and wet locations
  • Spacious, accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
  • Junction for branch conduits
  • Aluminum boxes can be used with steel rigid conduit
  • (1) each end hub
  • Die-Cast Aluminum material

Specification

Hub Size
1/2 in
Hub Style
NPT
Material
Aluminum
Mounting Type
Surface
Number of Gangs
1
Number of Knockouts
1
Number of Outlets
2
Series
FSC
Shape
Shallow
Dimensions
4-9/16 in H x 2-13/16 in W x 2-1/16 in D
Cable Entry
Hub
Capacity
21.6 cu-in
Standard & Approvals
UL E28688, CSA Certified, Federal Specification W-C-586, RoHS Compliant
Type
Industrial Grade Thru-Feed
Finish
Aluminum Lacquer
